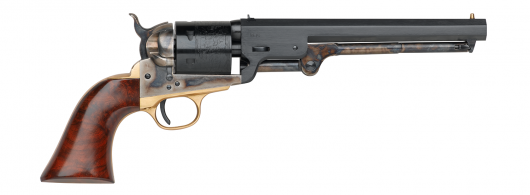

RICHARDS NAVY 1851 bbl. 7 ½″

1851 RICHARDS NAVY

In 1871, an employee from Colt by the name of Charles Richards was awarded a patent for converting Colt percussion models to breech loading cartridge revolvers. The Richards cartridge conversion was an instant success. On July 2nd, 1872, William Mason, another employee from Colt, was awarded a patent for an improvement to the Richards model. As percussion parts ran short, the 1860 Richards-Mason barrel was changed from the profile of the earlier percussion model, to the sleek profile found on the 1871-72 Open Top. The 1858 New Army improved conversion was introduced by Remington in circa 1873 with special factory installed two piece cylinder, leaving the loading lever and adding an ejector.

Back to category

Categories

In 1871, an employee from Colt by the name of Charles Richards was awarded a patent for converting Colt percussion models to breech loading cartridge revolvers. The Richards cartridge conversion was an instant success. On July 2nd, 1872, William Mason, another employee from Colt, was awarded a patent for an improvement to the Richards model. As percussion parts ran short, the 1860 Richards-Mason barrel was changed from the profile of the earlier percussion model, to the sleek profile found on the 1871-72 Open Top. The 1858 New Army improved conversion was introduced by Remington in circa 1873 with special factory installed two piece cylinder, leaving the loading lever and adding an ejector.


FinishesTechnicalParts and Schematics
000: STANDARD
A00: OLD WEST ANTIQUE PATINA FINISH REV.
B02: COIN FINISH HARDENING
C00: CHARCOAL BLUE FINISH
G08: HAND RUBBED OIL ON SELECTED WOOD
G13: POLYMER IVORY GRIPS
G16: POLYMER PEARL GRIPS
W00: WHITE FINISH FOR REV.
G23: “TIFFANY” GRIP
G24: “TIFFANY” SOLID SILVER GRIP
N00: NICKEL PLATING FOR REV.
Caliber: .38SP
Length of Barrel: 7½”
Overall Length: 13″
Weight: 2.8 lbs
Barrel: Forged steel
Frame: Forged steel and color case
Twist: Right
Cylinder: Engraved
Triggerguard: Brass
Grip: One piece walnut
Cylinder: 6
Barrel Shape: Octagonal Tapered



Item Model Barrel Length cal.
9082 RICHARDS NAVY 7.1/2″.38SP CAT.17548 7.1/2” 38 SPEC.


c

N. Code No. Q.ty Description
1 A0900001 1 OPEN TOP FRAME ASSEMBLY
2 A0900002 1 OPEN TOP HAMMER ASSEMBLY
3 9080003 1 BARREL .38 7.1/2″
4 0900004 1 WEDGE
5 0903005 1 CYLINDER .38SP.
7 A0900007 1 OPEN TOP HAND ASSEMBLY
8 0000008 1 CIVIL BRASS BACKSTRAP
9 0000009 1 BARREL STUD
10 0000010 1 TRIGGER
11 0000011 1 GRIP
12 0900012 1 BOLT
13 9080013 1 LOADING LEVER
15 0925015 1 SIGHT
19 0000019 1 TRIGGER BOLT SPRING
20 0400020 1 MAINSPRING
24 0000024 1 PLUNGER
26 0000026 1 CIVIL BRASS TRIGGERGUARD
28 0000028 1 CYLINDER LOCK PIN
31 0000031 2 TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
33 0900033 2 WEDGE SCREW
34 0000034 1 PLUNGER SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0000037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
39 0000039 1 LOADING LEVER SCREW
40 0000040 1 BOLT SCREW
136 0900136 1 GATE SPRING
142 0900142 1 GATE
145 0900145 1 GATE CATCH SCREW
154 9080154 1 REAR SIGHT BLADE
219 A9080219 1 RICHARDS-NAVY EJECTOR 7.1/2″ ASS.
692 0400692 1 HAND PIN SCREW
