1860 ARMY BBL. 8″

1860 ARMY

The 1851 Navy was a scaled up .36 caliber version of the 1849 Pocket Model. The handy, more powerful revolver immediately found a following among soldiers and civilians alike and was eventually adopted by both the U.S. and the British military. By the start of the Civil War, Colt had refined the Navy into a sleek, streamlined weapon with an improved loading lever. The 1861 Navy is often acclaimed as Colt’s most handsome pistol. Colt worked to perfect his cap and ball revolver, designing the 1860 Army around a lightweight frame, but chambered for the more powerful .44 caliber ball. The first models featured fluted cylinders, while later models incorporated a belted cylinder for added strength and a “creeping” loading lever for easier loading. The sleek 1860 Army is considered to be the ultimate combat handgun of the percussion era.

Back to category

The 1851 Navy was a scaled up .36 caliber version of the 1849 Pocket Model. The handy, more powerful revolver immediately found a following among soldiers and civilians alike and was eventually adopted by both the U.S. and the British military. By the start of the Civil War, Colt had refined the Navy into a sleek, streamlined weapon with an improved loading lever. The 1861 Navy is often acclaimed as Colt’s most handsome pistol. Colt worked to perfect his cap and ball revolver, designing the 1860 Army around a lightweight frame, but chambered for the more powerful .44 caliber ball. The first models featured fluted cylinders, while later models incorporated a belted cylinder for added strength and a “creeping” loading lever for easier loading. The sleek 1860 Army is considered to be the ultimate combat handgun of the percussion era.


FinishesTechnicalParts and Schematics
000: STANDARD
A00: OLD WEST ANTIQUE PATINA FINISH REV.
B02: COIN FINISH HARDENING
C00: CHARCOAL BLUE FINISH
G08: HAND RUBBED OIL ON SELECTED WOOD
W00: WHITE FINISH FOR REV.
B03: SILVER PLATING FOR BS/TG
B04: SILVER PLATING FOR S.A.
G10: SUPERIOR OIL FINISH FOR REV.
G27: LASER CHECKERED GRIP
G23: “TIFFANY” GRIP
G24: “TIFFANY” SOLID SILVER GRIP
Caliber: .44
Length of Barrel: 8″
Overall Length: 13.78″
Weight: 2.62 lbs
Barrel: Forged steel
Frame: Forged steel and color case
Twist: Left
Cylinder: Engraved or Fluted
Triggerguard: Brass
Grip: One piece walnut
Magazine tube capacity: 6



Item Model Barrel Length cal.
0040 1860 ARMY 8″ .44 REV.CUT FOR SH.ST. 8” .44


c

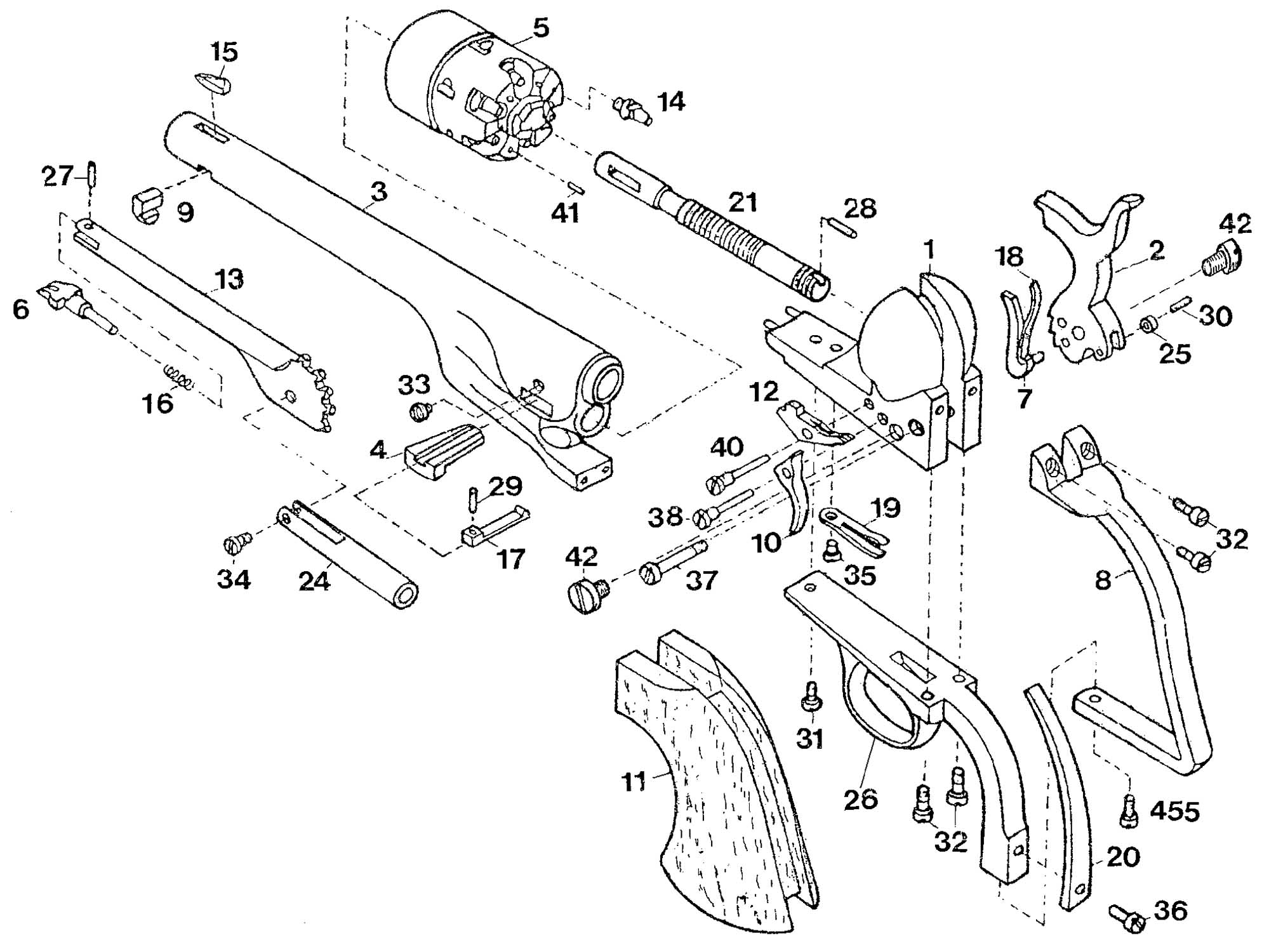

N. Code No. Q.ty Description
1 A0040001 1 ARMY60 FRAME ASSEMBLY
2 A0000002 1 NAVY51 HAMMER ASSEMBLY
3 0040003 1 BARREL .44
4 A0000004 1 NAVY51 WEDGE ASSEMBLY
5 A0040005 1 ARMY60 .44 CYLINDER ASSEMBLY
7 A0000007 1 NAVY51 HAND ASSEMBLY
8 0040008 1 BACKSTRAP
9 0000009 1 BARREL STUD
10 0000010 1 TRIGGER
11 0040011 1 GRIP
12 0000012 1 BOLT
13 A0040013 1 ARMY60 LOADING LEVER ASSEMBLY
15 0040015 1 SIGHT
19 0000019 1 TRIGGER BOLT SPRING
20 0000020 1 MAINSPRING
24 0040024 1 PLUNGER
26 0040026 1 TRIGGERGUARD
28 0000028 1 CYLINDER LOCK PIN
31 0070031 1 FRONT TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
33 0000033 1 WEDGE SCREW
34 0040034 1 PLUNGER SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0000037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
42 0040042 2 SHOULDER STOCK SCREW
455 0040455 1 CONNECT.SCREW



0041 1860 ARMY FLUTED CYL. 8″ .44 REV. CUT FOR SHOULDER STOCK 8” .44


c1

N. Code No. Q.ty Description
1 A0040001 1 ARMY60 FRAME ASSEMBLY
2 A0000002 1 NAVY51 HAMMER ASSEMBLY
3 0040003 1 BARREL .44
4 A0000004 1 NAVY51 WEDGE ASSEMBLY
5 A0041005 1 ARMY60 .44 FLUTED CYLINDER ASSEMBLY
7 A0000007 1 NAVY51 HAND ASSEMBLY
8 0040008 1 BACKSTRAP
9 0000009 1 BARREL STUD
10 0000010 1 TRIGGER
11 0040011 1 GRIP
12 0000012 1 BOLT
13 A0040013 1 ARMY60 LOADING LEVER ASSEMBLY
15 0040015 1 SIGHT
19 0000019 1 TRIGGER BOLT SPRING
20 0000020 1 MAINSPRING
24 0040024 1 PLUNGER
26 0040026 1 TRIGGERGUARD
28 0000028 1 CYLINDER LOCK PIN
31 0070031 1 FRONT TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
33 0000033 1 WEDGE SCREW
34 0040034 1 PLUNGER SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0000037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
42 0040042 2 SHOULDER STOCK SCREW
455 0040455 1 CONNECT.SCREW



0047 1860 ARMY 8″ .44 REV. – STEEL BS. WITHOUT CUT FOR SHOULDER STOCK 8” .44


c2

N. Code No. Q.ty Description
1 A0048001 1 ARMY60 CIVIL FRAME ASSEMBLY
2 A0000002 1 NAVY51 HAMMER ASSEMBLY
3 0040003 1 BARREL .44
4 A0000004 1 NAVY51 WEDGE ASSEMBLY
5 A0040005 1 ARMY60 .44 CYLINDER ASSEMBLY
7 A0000007 1 NAVY51 HAND ASSEMBLY
8 0047008 1 STEEL CIVIL BACKSTRAP
9 0000009 1 BARREL STUD
10 0000010 1 TRIGGER
11 0040011 1 GRIP
12 0000012 1 BOLT
13 A0040013 1 ARMY60 LOADING LEVER ASSEMBLY
15 0040015 1 SIGHT
19 0000019 1 TRIGGER BOLT SPRING
20 0000020 1 MAINSPRING
24 0040024 1 PLUNGER
26 0040026 1 TRIGGERGUARD
28 0000028 1 CYLINDER LOCK PIN
31 0070031 1 FRONT TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
33 0000033 1 WEDGE SCREW
34 0040034 1 PLUNGER SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0000037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
455 0040455 1 CONNECT.SCREW



0048 1860 ARMY CIVIL 8″ .44 REV. BRASS TG.&BS. 8” .44


c3

N. Code No. Q.ty Description
1 A0048001 1 ARMY60 CIVIL FRAME ASSEMBLY
2 A0000002 1 NAVY51 HAMMER ASSEMBLY
3 0040003 1 BARREL .44
4 A0000004 1 NAVY51 WEDGE ASSEMBLY
5 A0040005 1 ARMY60 .44 CYLINDER ASSEMBLY
7 A0000007 1 NAVY51 HAND ASSEMBLY
8 0048008 1 BRASS CIVIL BACKSTRAP
9 0000009 1 BARREL STUD
10 0000010 1 TRIGGER
11 0040011 1 GRIP
12 0000012 1 BOLT
13 A0040013 1 ARMY60 LOADING LEVER ASSEMBLY
15 0040015 1 SIGHT
19 0000019 1 TRIGGER BOLT SPRING
20 0000020 1 MAINSPRING
24 0040024 1 PLUNGER
26 0040026 1 TRIGGERGUARD
28 0000028 1 CYLINDER LOCK PIN
31 0070031 1 FRONT TRIGGERGUARD SCREW
32 0000032 4 REAR BACKSTRAP SCREW
33 0000033 1 WEDGE SCREW
34 0040034 1 PLUNGER SCREW
35 0000035 1 SCREW
36 0000036 1 MAIN SPRING SCREW
37 0000037 1 HAMMER SCREW
38 0000038 1 TRIGGER SCREW
40 0000040 1 BOLT SCREW
455 0040455 1 CONNECT.SCREW
