1885 SINGLE SHOT HIGH WALL

1885 SINGLE SHOT RIfLES AND CARBINE The production of the Single Shot started in September 1885 using the Browning patent and terminated towards the end of 1920. It became one of the best known guns and was regarded by many as being the best Single Shot ever to be made. Without doubt it is stronger than the Sharps better designed very accurate and reliable in every way. Few guns have been made in so many different calibers – high walls even served in the development of the 7.62 Nato round. The gun was produced during a period in which target shooting was a really popular sport they were used in International Competitions at 1 000 yards.

Back to category

1885 SINGLE SHOT RIfLES AND CARBINE The production of the Single Shot started in September 1885 using the Browning patent and terminated towards the end of 1920. It became one of the best known guns and was regarded by many as being the best Single Shot ever to be made. Without doubt it is stronger than the Sharps better designed very accurate and reliable in every way. Few guns have been made in so many different calibers – high walls even served in the development of the 7.62 Nato round. The gun was produced during a period in which target shooting was a really popular sport they were used in International Competitions at 1 000 yards.


FinishesTechnicalParts and Schematics
000: STANDARD
A01: ANTIQUE PATINA FINISH OLD WEST RIFLES
G05: HAND RUBBED OIL ON DELUXE WOOD
W03: WHITE FINISH FOR W73-SLIDE
C04: CHARCOAL BLUE FOR SINGLE SHOT
Caliber: 30/30 – .30/40krag. – .38/55 – .44/40 – .45LC – ..348WIN. – .405W – .40/65 – .45/70 – .45/90 – .45/120
Length of Barrel: 28″ – 30″ – 32″
Overall Length: bbl.30″ 47.12″
Weight: bbl.30″ 9.80 lbs
Barrel: Forged steel
Frame: Forged steel and color case
Barrel Shape: carbine ROUND TAPERED – rifle OCTAGONAL TAPERED
Stock: Walnut
Forend: Walnut



Item Model Barrel Length cal.
0870 SINGLE SHOT CARB.45-70 28″CAT.10177 28” 45-70


0870

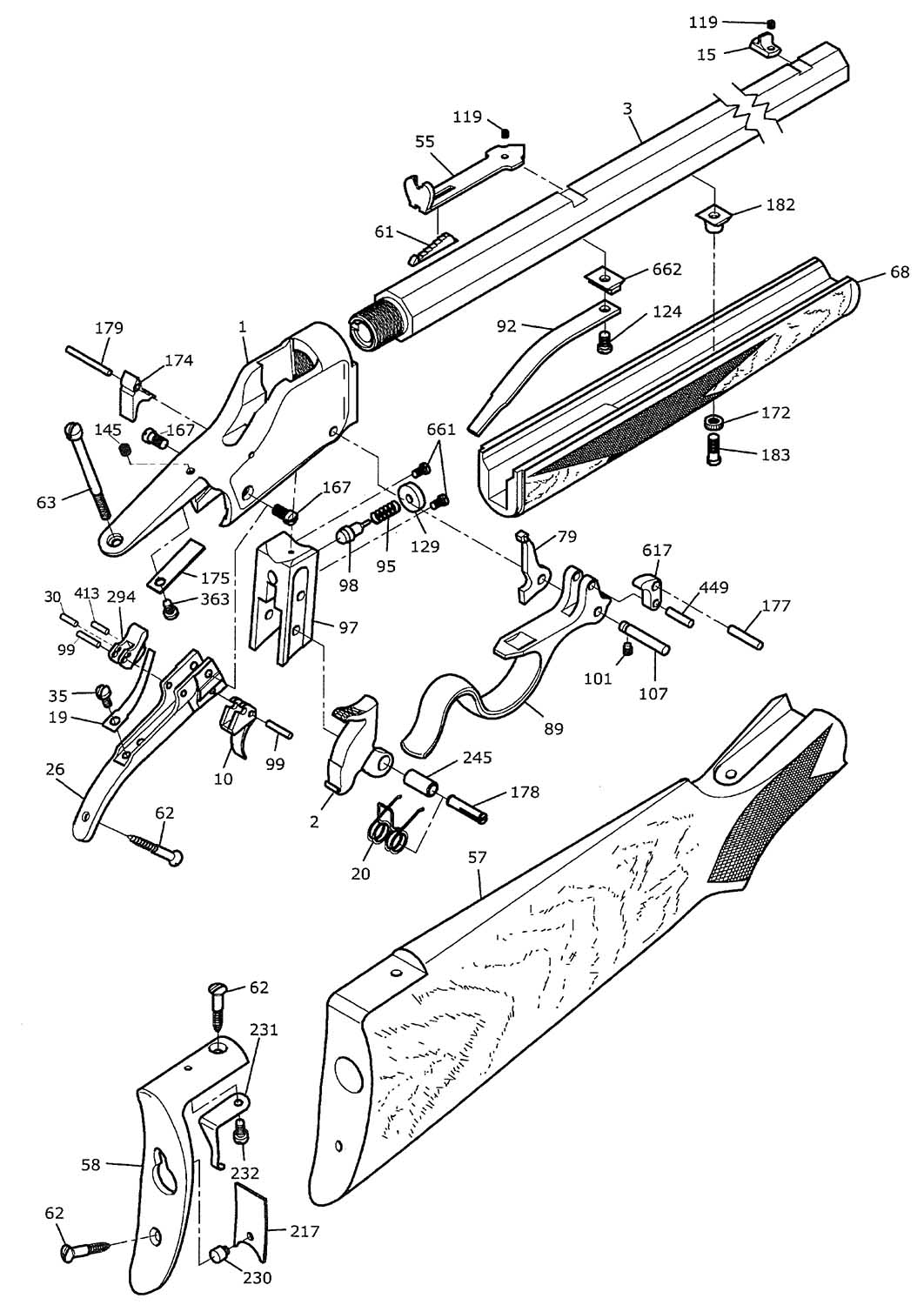

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0870003 1 BARREL 28″ .45-70
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0870057 1 BUTT STOCK
58 0870058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0870068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0870217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0870231 1 BUTT PLATE GATE SPRING
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0871 SINGLE SHOT CARB.30-30 28″CAT.10171 28” 30-30


0871

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0871003 1 BARREL 28″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0870057 1 BUTT STOCK
58 0870058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0870068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0870217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0870231 1 BUTT PLATE GATE SPRING
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0874 SINGLE SHOT CARB.40-65 28″CAT.10500 28” 40-65


0874

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0874003 1 BARREL 28″ .40-65
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0870057 1 BUTT STOCK
58 0870058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0870068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0870217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0870231 1 BUTT PLATE GATE SPRING
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0875 SINGLE SHOT CARB.38-55 28″CAT.10498 28” 38-55


0875

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0875003 1 BARREL 28″ .38-55
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0870057 1 BUTT STOCK
58 0870058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0870068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0870217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0870231 1 BUTT PLATE GATE SPRING
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0880 SINGLE SHOT RIFL.45-70 30″CAT.10178 30” 45-70


0880

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0880003 1 BARREL 30″ .45-70
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0881 SINGLE SHOT RIFL.30-30 30″CAT.10172 30” 30-30


0881

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0881003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0882 SINGLE SHOT RIFLE 45LC 30″CAT.10176 30” 45LC


0882

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0882003 1 BARREL 30″ .45LC
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0883 SINGLE SHOT RIFL.44-40 30″CAT.10174 30” 44-40


0883

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0883003 1 BARREL 30″ .44-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0884 SINGLE SHOT RIFL.40-65 30″CAT.10501 30” 40-65


0884

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0884003 1 BARREL 30″ .40-65
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0885 SINGLE SHOT RIFL.38-55 30″CAT.10499 30” 38-55


0885

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0885003 1 BARREL 30″ .38-55
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0886 SINGLE SHOT RIFL.45-90 30″CAT.10505 30” 45-90


0886

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0886003 1 BARREL 30″ .45-90
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0891 SINGLE SHOT RIF.32″ 45-70 CAT.10891 32” 45-70


0891

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0891003 1 BARREL 32″ .45-70
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0893 SINGLE SHOT RIF.32″ 45-90 CAT.10892 32” 45-90


0893

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0893003 1 BARREL 32″ .45-90
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0894 SINGLE SHOT RIF.32″45-120 CAT.10895 32” 45-120


0894

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0894003 1 BARREL 32″ .45-120
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0896 SINGLE SHOT RIF.30″45-120 CAT.10894 30” 45-120


0896

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0896003 1 BARREL 30″ .45-120
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0897 SINGLE SHOT RIFL.348W. 30″CAT.12891 30” 348Win


0897

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0897003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0897079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0898 SINGLE SHOT RIFL.30-40K.30″CT.12888 30” 30-40Krag


0898

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0898003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0899 SINGLE SHOT RIFLE 405WIN 30″C.14786 30” 405 W


0899

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0899003 1 BARREL 30″ .405WIN
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0880057 1 BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0870063 1 TANG SCREW
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8000 SINGLE SHOT RIFL.45-70 30″CAT.10178 CHECKERED PISTOL GRIP 30” 45-70


8000

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0880003 1 BARREL 30″ .45-70
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8001 SINGLE SHOT RIFL.30-30 30″CAT.10172 CHECKERED PISTOL GRIP 30” 30-30


8001

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0881003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8002 SINGLE SHOT RIFLE 45LC 30″CAT.10176 CHECKERED PISTOL GRIP 30” 45LC


8002

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0882003 1 BARREL 30″ .45LC
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8003 SINGLE SHOT RIFL.44-40 30″CAT.10174 CHECKERED PISTOL GRIP 30” 44-40


8003

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0883003 1 BARREL 30″ .44-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8004 SINGLE SHOT RIFL.40-65 30″CAT.10501 CHECKERED PISTOL GRIP 30” 40-65


8004

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0884003 1 BARREL 30″ .40-65
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8005 SINGLE SHOT RIFL.38-55 30″CAT.10499 CHECKERED PISTOL GRIP 30″ 38-55


8005

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0885003 1 BARREL 30″ .38-55
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0871079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8006 SINGLE SHOT RIFL.45-90 30″CAT.10505 CHECKERED PISTOL GRIP 30” 45-90


8006

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0886003 1 BARREL 30″ .45-90
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8007 SINGLE SHOT RIF.30″45-120 CAT.10894 CHECKERED PISTOL GRIP 30” 45-120


8007

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0896003 1 BARREL 30″ .45-120
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8009 SINGLE SHOT RIF.32″ 45-70 CAT.10891 CHECKERED PISTOL GRIP 32” 45-70


8009

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0891003 1 BARREL 32″ .45-70
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8010 SINGLE SHOT RIF.32″ 45-90 CAT.10892 CHECKERED PISTOL GRIP 32” 45-90


8010

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0893003 1 BARREL 32″ .45-90
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8011 SINGLE SHOT RIF.32″45-120 CAT.10895 CHECKERED PISTOL GRIP 32” 45-120


8011

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0894003 1 BARREL 32″ .45-120
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8012 SINGLE SHOT RIFL.348W. 30″CAT.12891 CHECKERED PISTOL GRIP 30″ 348Win.


8012

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0897003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0897079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8013 SINGLE SHOT RIF.30″30-40K.CAT.12888 CHECKERED PISTOL GRIP 30″ 30-40Krag


8013

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0898003 1 BARREL 30″ .30-30
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0870079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8014 SINGLE SHOT RIFLE 405WIN.30″C.14786 CHECKERED PISTOL GRIP 30″ 405 W


8014

N. Code No. Q.ty Description
1 0870001 1 FRAME
2 0870002 1 HAMMER
3 0899003 1 BARREL 30″ .405WIN
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8000057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0880058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8000063 1 TANG SCREW FOR C.P.G.MOD.
68 0880068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0870097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
217 0880217 1 BUTT PLATE
230 0870230 1 BUTT PLATE
231 0880231 1 BUTT PLATE GATE SPRING
232 0880232 1 LEVER SPRING SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW


  • RICHARDS NAVY 1851 bbl. 7 ½″

    1851 RICHARDS NAVY

  • 1851 RICHARDS-MASON NAVY bbl. 7 ½″

    1851 RICHARDS-MASON NAVY

  • 1860 RICHARDS-MASON ARMY - bbl.5½''

    1860 RICHARDS-MASON ARMY

  • 1858 NEW IMPROVED ARMY CONVERSION BBL 8”

    1858 NEW IMPROVED ARMY

  • 1873 CATTLEMAN CARBINE NEW MODEL BBL. 18″

    1873 CATTLEMAN CARBINE NEW MODEL

  • 1848 BABY DRAGOON - bbl.4''

    1848 BABY DRAGOON

  • 1849 POCKET - bbl.4″

    1849 POCKET

  • 1851 NAVY BBL. 7 ½″

    1851 NAVY

  • 1858 NEW ARMY - Stainless Steel BBL. 8”

    1858 NEW ARMY INOX

  • 1873 CATTLEMAN NEW MODEL BLACK POWDER bbl. 7 ½″

    1873 CATTLEMAN NEW MODEL BLACK POWDER MUZZLE LOADING
