1866 YELLOWBOY RIFLE & CARBINE

The 1866 Yellowboy was a marked improvement over the old Henry. Winchester’s plant superintendent Nelson King devised a convenient loading gate that passed cartridges through the side of the receiver. This not only made the new rifle more functional but also allowed for the installation of a wooden fore-end. The handy carbine version of the 1866 Yellowboy was the first true cowboy lever-action rifle and was the first rifle widely carried in a cowboy-style saddle scabbard. The new 1866 Yellowboy was a hit worldwide. Chief Sitting Bull had an 1866 Benito Juarez’s forces used Yellowboys in Mexico and the Turkish army used the new Winchester against the Russians. Uberti has recreated three of the most popular models: the Yellowboy Carbine with a 19″ barrel and carbine style brass buttplate the Yellowboy Rifle with 24¼” barrel and Short Rifle with 20″ barrel both with a brass fore-end nose cap and a solid brass crescent buttplate.

Back to category

The 1866 Yellowboy was a marked improvement over the old Henry. Winchester’s plant superintendent Nelson King devised a convenient loading gate that passed cartridges through the side of the receiver. This not only made the new rifle more functional but also allowed for the installation of a wooden fore-end. The handy carbine version of the 1866 Yellowboy was the first true cowboy lever-action rifle and was the first rifle widely carried in a cowboy-style saddle scabbard. The new 1866 Yellowboy was a hit worldwide. Chief Sitting Bull had an 1866 Benito Juarez’s forces used Yellowboys in Mexico and the Turkish army used the new Winchester against the Russians. Uberti has recreated three of the most popular models: the Yellowboy Carbine with a 19″ barrel and carbine style brass buttplate the Yellowboy Rifle with 24¼” barrel and Short Rifle with 20″ barrel both with a brass fore-end nose cap and a solid brass crescent buttplate.

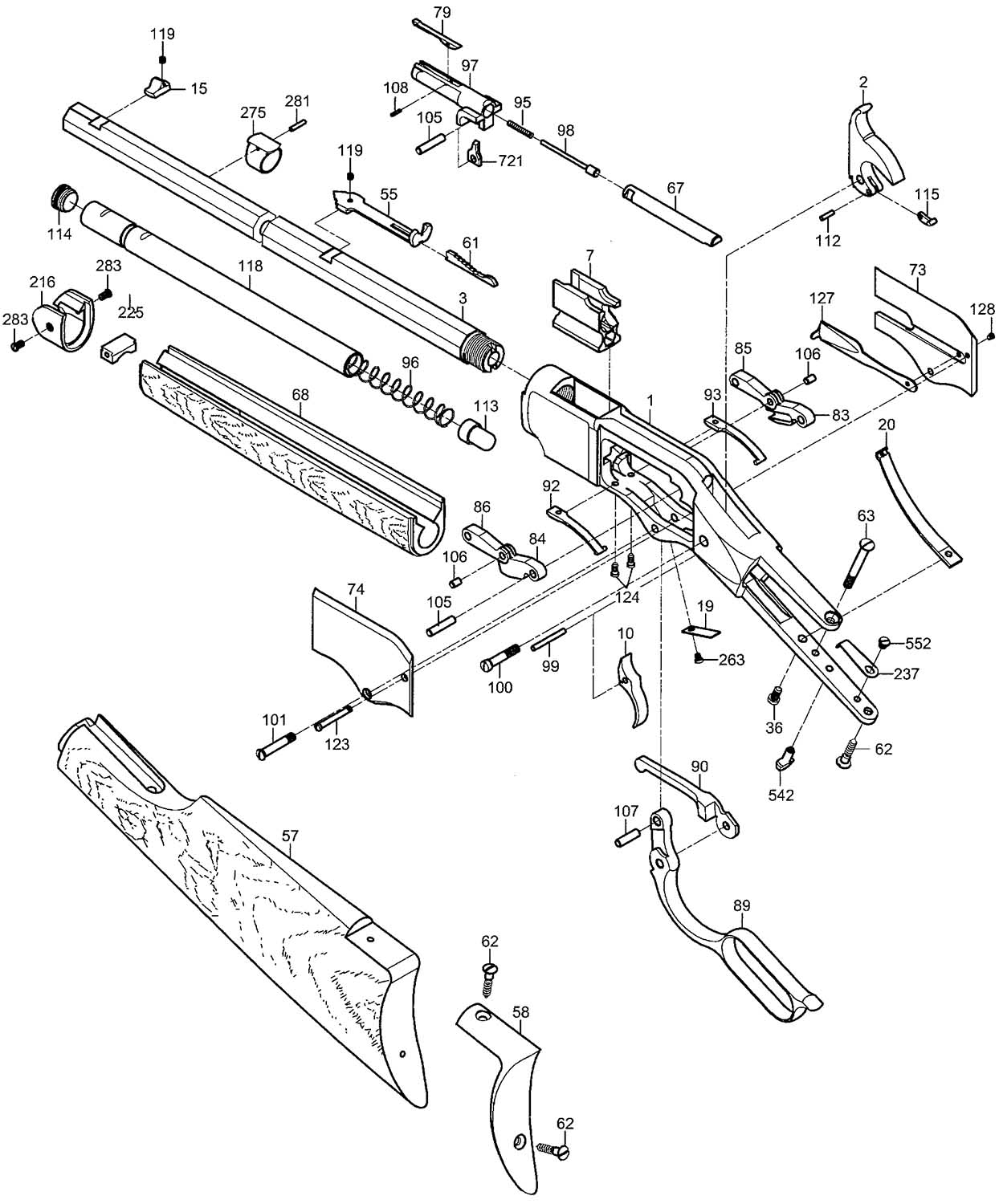

FinishesTechnicalParts and Schematics
000: STANDARD
A01: ANTIQUE PATINA FINISH OLD WEST RIFLES
G05: HAND RUBBED OIL ON DELUXE WOOD
C02: CHARCOAL BLUE
W02: WHITE FINISH FOR W66
Caliber: .22LR – .22MAG. – .32/20 – .38SP. – .38/40 – .44SP. – .44/40 – .45LC
Length of Barrel: 16¹/8″ – 18″ – 19″
Overall Length: bbl.19″ 38.42″
Weight: bbl.19″ 7.05 lbs
Barrel: Forged steel
Frame: Forged brass
Barrel Shape: carbine ROUND TAPERED – rifle OCTAGONAL TAPERED
Stock: Walnut
Forend: Walnut


Item Model Barrel Length cal.
0200 66 YELLOWBOY MOD.CARBINE .22LR 19″ CAT.1560 19” 22LR


0200

N. Code No. Q.ty Description
1 0200001 1 FRAME
2 0200002 1 HAMMER
3 0200003 1 BARREL .22LR
7 0200007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
18 0200018 1 CARRIER BLOCK SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
70 0200070 1 MAGAZINE TUBE FRONT FERRULE
71 0200071 1 MAGAZINE TUBE REAR FERRULE
73 0200073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
78 0200078 1 STOP LATCH
79 0200079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
95 0200095 1 FIRING PIN SPRING
96 0200096 1 MAGAZINE SPRING
97 0200097 1 BREECH BLOCK
98 0200098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
104 0200104 1 FIRING PIN STOP
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0200108 1 EXTRACTOR PIN
110 0200110 1 MAGAZINE TUBE PLUNG PIN
112 0200112 1 HAMMER LINK PIN
113 0200113 1 MAGAZINE FOLLOWER
114 0200114 1 MAGAZINE TUBE BING
115 0200115 1 STIRRUP
116 0200116 1 OUTSIDE MAGAZINE TUBE
118 0200118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
125 0200125 1 CARRIER BLOCK SPRING SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0201 66 MOD.YELLOWBOY CARBINE .38/40 19″ CAT.12893 19″ 38-40


0201

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0201003 1 BARREL .38-40
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0202 66 MOD.SPORTING RIFLE .22LR 24.1/4″ CAT.1567 24.1/4” 22LR


0202

N. Code No. Q.ty Description
1 0200001 1 FRAME
2 0200002 1 HAMMER
3 0262003 1 BARREL 24.1/4″ .22LR
7 0200007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
18 0200018 1 CARRIER BLOCK SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
70 0200070 1 MAGAZINE TUBE FRONT FERRULE
71 0200071 1 MAGAZINE TUBE REAR FERRULE
73 0200073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
78 0200078 1 STOP LATCH
79 0200079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
95 0200095 1 FIRING PIN SPRING
96 0202096 1 MAGAZINE SPRING
97 0200097 1 BREECH BLOCK
98 0200098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
104 0200104 1 FIRING PIN STOP
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0200108 1 EXTRACTOR PIN
110 0200110 1 MAGAZINE TUBE PLUNG PIN
112 0200112 1 HAMMER LINK PIN
113 0200113 1 MAGAZINE FOLLOWER
114 0200114 1 MAGAZINE TUBE BING
115 0200115 1 STIRRUP
116 0202116 1 OUTSIDE MAGAZINE TUBE
118 0202118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
125 0200125 1 CARRIER BLOCK SPRING SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0210 66 MOD.YELLOWBOY CARBINE .22MAG 19″ CAT.1561 19” 22MAG.


0210

N. Code No. Q.ty Description
1 0200001 1 FRAME
2 0200002 1 HAMMER
3 0210003 1 BARREL .22 MAG 19″
7 1
10 0200010 1 TRIGGER
18 0200018 1 CARRIER BLOCK SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
70 0200070 1 MAGAZINE TUBE FRONT FERRULE
71 0200071 1 MAGAZINE TUBE REAR FERRULE
73 0200073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
78 0200078 1 STOP LATCH
79 0200079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
95 0200095 1 FIRING PIN SPRING
96 0200096 1 MAGAZINE SPRING
97 0200097 1 BREECH BLOCK
98 0200098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
104 0200104 1 FIRING PIN STOP
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0200108 1 EXTRACTOR PIN
110 0200110 1 MAGAZINE TUBE PLUNG PIN
112 0200112 1 HAMMER LINK PIN
113 0200113 1 MAGAZINE FOLLOWER
114 0200114 1 MAGAZINE TUBE BING
115 0200115 1 STIRRUP
116 0200116 1 OUTSIDE MAGAZINE TUBE
118 0200118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
125 0200125 1 CARRIER BLOCK SPRING SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0212 66 MOD.SPORTING RIFLE.22MAG 24.1/4″ CAT.1568 24.1/4” 22MAG.


0212

N. Code No. Q.ty Description
1 0200001 1 FRAME
2 0200002 1 HAMMER
3 0212003 1 BARREL .22MAG. 24.1/4″
7 1
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
18 0200018 1 CARRIER BLOCK SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
70 0200070 1 MAGAZINE TUBE FRONT FERRULE
71 0200071 1 MAGAZINE TUBE REAR FERRULE
73 0200073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
78 0200078 1 STOP LATCH
79 0200079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
95 0200095 1 FIRING PIN SPRING
96 0202096 1 MAGAZINE SPRING
97 0200097 1 BREECH BLOCK
98 0200098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
104 0200104 1 FIRING PIN STOP
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0200108 1 EXTRACTOR PIN
110 0200110 1 MAGAZINE TUBE PLUNG PIN
112 0200112 1 HAMMER LINK PIN
113 0200113 1 MAGAZINE FOLLOWER
114 0200114 1 MAGAZINE TUBE BING
115 0200115 1 STIRRUP
116 0202116 1 OUTSIDE MAGAZINE TUBE
118 0202118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
125 0200125 1 CARRIER BLOCK SPRING SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0216 66 MOD.YELLOWBOY CARBINE .32/20 19″ CAT.12323 19” 32-20


0216

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0216003 1 BARREL .32/20
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0217 66 SHORT RIFLE .44SP 20″ CAT.11711 20” 44SPEC.


0217

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0285003 1 BARREL SHORT 20″ .44SPEC.
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0218 66 MOD.YELLOWBOY CARBINE .44SP 19″ CAT.7353 19” 44SPEC.


0218

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 1
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0219 66 MOD.SPORTING RIFLE .44SP 24.1/4″ CAT.7352 24.1/4 44SPEC.


0219

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0249003 1 BARREL 24.1/4″ .44SPEC.
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0220 66 MOD.YELLOWBOY CARBINE .38SP 19″ CAT.1562 19” 38 SPEC.


0220

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0220003 1 BARREL .38SP
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0221 66 SHORT RIFLE .38SP 20″ CAT.10050 20” 38 SPEC.


0221

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0221003 1 BARREL .38SP
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0222 66 MOD.SPORTING RIFLE .38SP 24.1/4″ CAT.1569 24.1/4” 38 SPEC.


0222

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0252003 1 BARREL 24.1/4″ .38SP
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0223 66 MOD.TRAPPER CARBINE .38SP 16.1/8 CAT.1565 16.1/8” 38 SPEC.


0223

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 1
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 A0240055 1 W73 CARBINE REAR ASSEMBLY
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0223096 1 MAGAZINE SPRING 16.1/8″
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0224 MOD.66 SPORTING RIFLE.38-40 24.1/4″ CAT.11709 24.1/4” 38-40


0224

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0264003 1 BARREL 24.1/4″ .38/40
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0225 66 SHORT RIFLE .38-40 20″ CAT.11707 20” 38-40


0225

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0283003 1 BARREL SHORT 20″ .38/40
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0226 66 MOD.SPORTING RIFLE.32-20 24.1/4″ CAT.11703 24.1/4” 32-20


0226

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0255003 1 BARREL 24.1/4″ .32-20
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0227 66 SHORT RIFLE .32-20 20″ CAT.11705 20” 32-20


0227

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 0293003 1 BARREL SHORT 20″ .32/20
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0228 MOD.66 YELLOWBOY CARBINE.45COLT 19″ CAT.6797 19” 45LC


0228

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0228003 1 BARREL .45COLT
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0229 MOD.66 SPORTING RIFLE.45COLT 24.1/4 CAT.6796 24.1/4” 45LC


0229

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0282003 1 BARREL 24.1/4″ .45LC
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0230 66 MOD.YELLOWBOY CARBINE .44/40 19″ CAT.1563 19” 44-40


0230

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0230003 1 BARREL .44/40
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0200055 1 REAR
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
69 0200069 1 REAR BASE
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
119 0200119 1 REAR SCREW
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0231 66 SHORT RIFLE.44/40 20″ CAT.10051 20” 44-40


0231

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0241003 1 BARREL SHORT 20″ .44/40
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0232 66 MOD.SPORTING RIFLE.44/40 24.1/4″ CAT.1570 24.1/4” 44-40


0232

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0242003 1 BARREL 24.1/4″ .44/40
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0202068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0232096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0232118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0233 66 MOD.CARBINE TRAPPER.44/40 16.1/8 CAT.1566 16.1/8” 44-40


0233

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 1
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 A0240055 1 W73 CARBINE REAR ASSEMBLY
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0223096 1 MAGAZINE SPRING 16.1/8″
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



0234 66 SHORT RIFLE.45COLT 20″ CAT.10052 20” 45LC


0234

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0281003 1 BARREL SHORT 20″ .45LC
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0241118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



0235 66 MOD.TRAPPER CARBINE .45LC 16.1/8 CAT.14122 16.1/8” 45LC


0235

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 0211003 1 BARREL .45LC 16.1/8″
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 A0240055 1 W73 CARBINE REAR ASSEMBLY
57 0200057 1 W66 CARBINE BUTT STOCK
58 0200058 1 BUTT PLATE
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0200068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
80 0240080 1 FRONT BAND
81 0200081 1 FOREND BAND
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0223096 1 MAGAZINE SPRING 16.1/8″
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 0230118 1 MAGAZINE TUBE
121 0200121 1 BAND SCREW
122 0200122 1 FOREND SCREW
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
542 0200542 1 LEVER HOOK
721 0220721 1 FIRING PIN EXTENSION STOP



2026 1866 SPORTING RIFLE .38SPECIAL 18″ CAT.15670 18″ 38 SPEC.


0020[1]

N. Code No. Q.ty Description
1 0220001 1 FRAME
2 0200002 1 HAMMER
3 2026003 1 BARREL 18″ .38SPEC.
7 0220007 1 CARRIER BLOCK .38SP/.357MAG.
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0220079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0220097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0220108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0220113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 2008118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



2027 1866 SPORTING RIFLE .45COLT 18″ CAT.15672 18″ 45LC


0020[1]

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 2011003 1 BARREL 18″ .45LC
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 2008118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP



2028 1866 SPORTING RIFLE .44-40 18″ CAT.15671 18″ 44-40


0020[1]

N. Code No. Q.ty Description
1 0230001 1 FRAME
2 0200002 1 HAMMER
3 2008003 1 BARREL 18″ .44/40
7 0230007 1 CARRIER BLOCK
10 0200010 1 TRIGGER
15 0202015 1 SIGHT
16 0070016 1 SPRING
19 0200019 1 TRIGGER SPRING
20 0200020 1 MAIN SPRING
35 0000035 1 SCREW
36 0200036 1 MAIN SPRING SCREW
55 0242055 1 REAR
57 0202057 1 W66 RIFLE BUTT STOCK
58 0202058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0200063 1 TANG SCREW
67 0200067 1 FIRING PIN EXTENSION
68 0241068 1 FOREND
73 0220073 1 RIGHT SIDE PLATE
74 0200074 1 LEFT SIDE PLATE
79 0230079 1 EXTRACTOR
83 0220083 1 RIGHT REAR LINK
84 0220084 1 LEFT REAR LINK
85 0220085 1 RIGHT FRONT LINK
86 0220086 1 LEFT FRONT LINK
89 0200089 1 LEVER
90 0200090 1 LIFTER ARM
92 0200092 1 RIGHT LEVER SPRING
93 0200093 1 LEFT LEVER SPRING
96 0230096 1 MAGAZINE SPRING
97 0230097 1 BREECH BLOCK
98 0220098 1 FIRING PIN
99 0200099 1 TRIGGER PIN
100 0200100 1 HAMMER PIN SCREW
101 0200101 1 LEVER SCREW
105 0200105 2 REAR LINK PIN
107 0200107 1 LEVER PIN
108 0230108 1 EXTRACTOR PIN
112 0200112 1 HAMMER LINK PIN
113 0230113 1 MAGAZINE FOLLOWER
114 0230114 1 MAGAZINE TUBE PLUG
115 0200115 1 STIRRUP
118 2008118 1 MAGAZINE TUBE
123 0200123 1 SIDE PLATE SCREW
124 0200124 2 LEVER SPRING SCREW
127 0220127 1 LADLE
128 0220128 1 LADLE SCREW
134 0400134 2 GATE CATCH
216 0202216 1 FOREND PROTECTION
225 0202225 1 FOREND PROTECTION BEARING
237 0200237 1 LEVER HOOK SPRING
263 0200263 1 TRIGGER SPRING SCREW
275 0202275 1 MAGAZINE TUBE BEARING
281 0202281 1 MAGAZINE TUBE BEARING PIN
283 0202283 2 FOREND PROTECTION SCREW
542 0200542 1 LEVER HOOK
692 0400692 2 HAND PIN SCREW
721 0220721 1 FIRING PIN EXTENSION STOP


  • 1860 RICHARDS-MASON ARMY - bbl.5½''

    1860 RICHARDS-MASON ARMY

  • 1872 OPEN TOP LATE MODEL bbl. 7 ½″

    1872 OPEN TOP LATE MODEL

  • 1858 NEW IMPROVED ARMY CONVERSION BBL 8”

    1858 NEW IMPROVED ARMY

  • 1873 CATTLEMAN CARBINE NEW MODEL BBL. 18″

    1873 CATTLEMAN CARBINE NEW MODEL

  • 1873 CATTLEMAN BISLEY BBL. 7 ½″

    1873 CATTLEMAN BISLEY

  • 1849 POCKET - bbl.4″

    1849 POCKET

  • 1851 NAVY BBL. 7 ½″

    1851 NAVY

  • 1861 NAVY bbl. 7 ½″

    1861 NAVY

  • 1858 TARGET CARBINE bbl. 18”

    1858 NEW ARMY CARBINE

  • 1873 CATTLEMAN NEW MODEL BLACK POWDER bbl. 7 ½″

    1873 CATTLEMAN NEW MODEL BLACK POWDER MUZZLE LOADING
