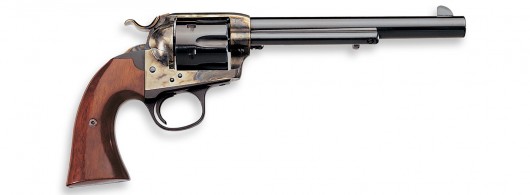

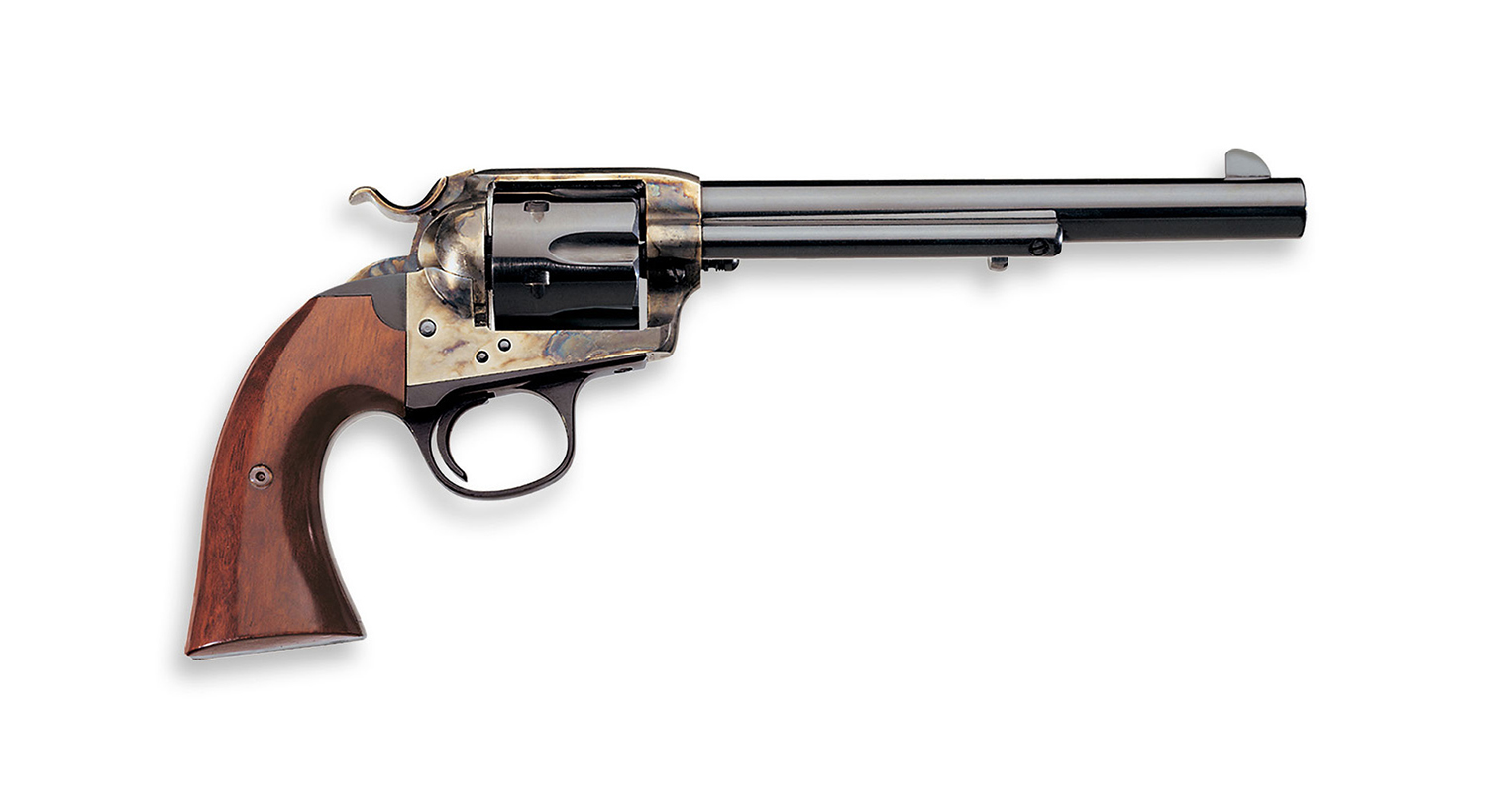

The Colt Bisley was designed as a target pistol to compete at the British Commonwealth Championship Match in Bisley England in 1894. The Bisley featured a longer grip-frame for its target grips and a wide target hammer with a lower profile. Over 40 000 Colt Bisleys were made between 1894 and 1915.
FinishesTechnicalParts and Schematics
| 000: |
STANDARD |
| A00: |
OLD WEST ANTIQUE PATINA FINISH REV. |
| C00: |
CHARCOAL BLUE FINISH |
| W00: |
WHITE FINISH FOR REV. |
| N00: |
NICKEL PLATING FOR REV. |
| Caliber: |
.357MAG – .38/40 – .44/40 – .44SP – .45LC – .45ACP |
| Length of Barrel: |
4¾” – 5½” – 7½” |
| Overall Length: |
bbl.7½ 13.58″ |
| Weight: |
bbl.7½ 2.76 lbs |
| Barrel: |
Forged steel |
| Frame: |
Forged steel and color case |
| Twist: |
Left |
| Cylinder: |
Fluted |
| Grip: |
Two pieces walnut |
| Cylinder: |
6 |
| Barrel Shape: |
Round Tapered |
| Sight: |
Fixed |
| BS & TG: |
One piece steel |
| Item |
Model |
Barrel |
Length cal. |
| 0602 |
CATTLEMAN BISLEY REV.4.3/4″ .357MAG CAT.1521 |
4.3/4” |
357MAG. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0400003 |
1 |
BARREL 4.3/4″ .357MAG/38SP. |
| 5 |
0400005 |
1 |
CYLINDER .357MAG |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0946015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0603 |
CATTLEMAN BISLEY REV.5.1/2″.357MAG CAT.1522 |
5.1/2” |
357MAG. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0401003 |
1 |
BARREL 5.1/2″ .357MAG/38SP. |
| 5 |
0400005 |
1 |
CYLINDER .357MAG |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0946015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0604 |
CATTLEMAN BISLEY REV.7.1/2″.357MAG CAT.1523 |
7.1/2” |
357MAG. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0405003 |
1 |
BARREL 7.1/2″ .357MAG/38SP. |
| 5 |
0400005 |
1 |
CYLINDER .357MAG |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0946015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0400219 |
1 |
SAA EJECTOR N.M.4.3/4″.357MG ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0606 |
CATTLEMAN BISLEY REV.4.3/4″.45ACP CAT.11117 |
4.3/4” |
45ACP |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
| 5 |
0402005 |
1 |
CYLINDER .45ACP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0607 |
CATTLEMAN BISLEY REV.5.1/2″.45ACP CAT.11118 |
5.1/2” |
45ACP |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0411003 |
1 |
BARREL 5.1/2″ |
| 5 |
0402005 |
1 |
CYLINDER .45ACP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0608 |
CATTLEMAN BISLEY REV.7.1/2″.45ACP CAT.11095 |
7.1/2” |
45ACP |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
| 5 |
0402005 |
1 |
CYLINDER .45ACP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0612 |
CATTLEMAN BISLEY REV.4.3/4″ .45LC CAT.6205 |
4.3/4” |
45LC |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0410003 |
1 |
BARREL 4.3/4″ .45LC |
| 5 |
0410005 |
1 |
CYLINDER .45LC |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0613 |
CATTLEMAN BISLEY REV. 5.1/2″ .45LC CAT.6206 |
5.1/2” |
45LC |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0411003 |
1 |
BARREL 5.1/2″ |
| 5 |
0410005 |
1 |
CYLINDER .45LC |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0614 |
CATTLEMAN BISLEY REV. 7.1/2″ .45LC CAT.6204 |
7.1/2” |
45LC |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0415003 |
1 |
BARREL 7.1/2″ .45LC |
| 5 |
0410005 |
1 |
CYLINDER .45LC |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0618 |
CATTLEMAN BISLEY REV.4.3/4″ .44SP CAT.5539 |
4.3/4” |
44SPEC. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
| 5 |
0680005 |
1 |
CYLINDER .44S&WSP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0619 |
CATTLEMAN BISLEY REV.5.1/2″ .44SP CAT.5540 |
5.1/2” |
44SPEC. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
| 5 |
0680005 |
1 |
CYLINDER .44S&WSP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0620 |
CATTLEMAN BISLEY REV.7.1/2″ .44SP CAT.5541 |
7.1/2” |
44SPEC. |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0425003 |
1 |
BARREL 7.1/2″ .44/40 |
| 5 |
0680005 |
1 |
CYLINDER .44S&WSP |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0622 |
CATTLEMAN BISLEY REV.4.3/4″ .44/40 CAT.1515 |
4.3/4” |
44-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0420003 |
1 |
BARREL 4.3/4″ .44/40 |
| 5 |
0420005 |
1 |
CYLINDER .44/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0623 |
CATTLEMAN BISLEY REV.5.1/2″.44/40 CAT.1516 |
5.1/2” |
44-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0421003 |
1 |
BARREL 5.1/2″ .44/40 |
| 5 |
0420005 |
1 |
CYLINDER .44/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0624 |
CATTLEMAN BISLEY REV.7.1/2″.44/40 CAT.1517 |
7.1/2” |
44-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0425003 |
1 |
BARREL 7.1/2″ .44/40 |
| 5 |
0420005 |
1 |
CYLINDER .44/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0627 |
CATTLEMAN BISLEY REV.4.3/4″ .38-40 CAT.5537 |
4.3/4” |
38-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0685003 |
1 |
BARREL 4.3/4″ .38/40 |
| 5 |
0685005 |
1 |
CYLINDER .38/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0628 |
CATTLEMAN BISLEY REV.5.1/2″ .38-40 CAT.5542 |
5.1/2” |
38-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0686003 |
1 |
BARREL 5.1/2″ .38/40 |
| 5 |
0685005 |
1 |
CYLINDER .38/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
| 0629 |
CATTLEMAN BISLEY REV.7.1/2″ .38-40 CAT.5538 |
7.1/2” |
38-40 |
| N. |
Code No. |
Q.ty |
Description |
| 1 |
A0602001 |
1 |
SAA BISLEY FRAME ASSEMBLY |
| 2 |
A0602002 |
1 |
BISLEY HAMMER WITH SAFETY ASSEMBLY |
| 3 |
0687003 |
1 |
BARREL 7.1/2″ .38/40 |
| 5 |
0685005 |
1 |
CYLINDER .38/40 |
| 7 |
0400007 |
1 |
HAND |
| 10 |
0602010 |
1 |
TRIGGER |
| 12 |
0400012 |
1 |
BOLT |
| 15 |
0940015 |
1 |
FRONT SIGHT |
| 18 |
0400018 |
1 |
HAND SPRING -COIL TYPE |
| 19 |
0000019 |
1 |
TRIGGER BOLT SPRING |
| 20 |
0602020 |
1 |
MAIN SPRING |
| 21 |
0400021 |
1 |
BASE PIN |
| 22 |
0400022 |
1 |
HAND PIN |
| 31 |
0000031 |
1 |
TRIGGERGUARD SCREW |
| 32 |
0000032 |
4 |
REAR BACKSTRAP SCREW |
| 35 |
0000035 |
1 |
SCREW |
| 37 |
0400037 |
1 |
HAMMER SCREW |
| 38 |
0000038 |
1 |
TRIGGER SCREW |
| 40 |
0000040 |
1 |
BOLT SCREW |
| 43 |
0602043 |
1 |
RIGHT GRIP NUT |
| 44 |
0602044 |
1 |
LEFT GRIP NUT |
| 45 |
0602045 |
1 |
RIGHT GRIP |
| 46 |
0602046 |
1 |
LEFT GRIP |
| 53 |
1000053 |
1 |
MAIN SPRING SCREW |
| 54 |
0602054 |
1 |
GRIP SCREW |
| 135 |
4500135 |
1 |
EJECTOR SPRING |
| 137 |
4500137 |
1 |
BASE PIN SPRING |
| 139 |
0400139 |
1 |
BASE PIN NUT |
| 140 |
0400140 |
1 |
BASE PIN SCREW |
| 143 |
0400143 |
1 |
EJECTOR TUBE |
| 144 |
0400144 |
1 |
EJECTOR TUBE SCREW |
| 187 |
0400187 |
1 |
BASE PIN BUSHING |
| 219 |
A0410219 |
1 |
SAA EJECTOR N.M.4.3/4″.45LC ASS. |
| 573 |
0602573 |
1 |
BACKSTRAP |
| 692 |
0400692 |
1 |
HAND PIN SCREW |
