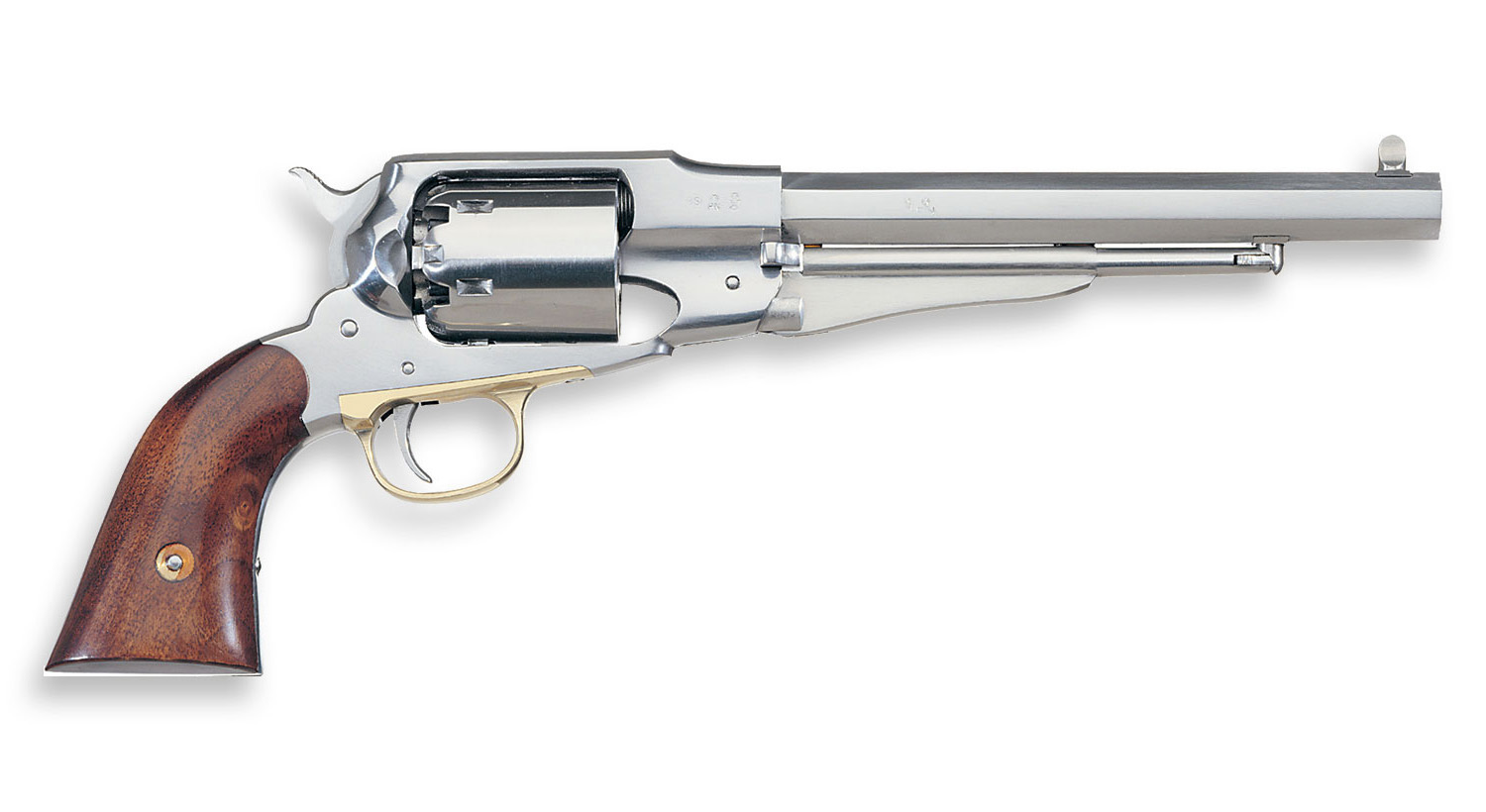

1858 NEW ARMY - Stainless Steel BBL. 8”
  • 1858 NEW ARMY - Stainless Steel, STEEL TARGET BBL. 8”

1858 NEW ARMY INOX

Though many percussion revolvers were on the market before during and after the Civil War no firearm offered such a challenge to the dominant Colt revolvers as did the 1858 Remington. Produced in both .36 caliber (Navy) and in the more popular .44 caliber the 1858 Revolver was considered by many to be every bit the gun a Colt was and then some. It is said that soldiers of the Civil War not only preferred it by far as their choice of sidearm but would actually trade a handful of Colts for one Remington New Army. In fact after the war the Remington out-sold the Colt as a surplus weapon to veterans who had experienced first hand how the two guns stood up side by side to the rigors of combat use. The strength of the Remington had always been the first issue in its favor. As elegant as the Colt revolvers were they lacked the strength of the solid frame Remington. Perhaps not as easily dismantled for cleaning the Remington 1858 was full framed and capable of bearing under greater abuse than the open-top design of the Colt.

Back to category

Though many percussion revolvers were on the market before during and after the Civil War no firearm offered such a challenge to the dominant Colt revolvers as did the 1858 Remington. Produced in both .36 caliber (Navy) and in the more popular .44 caliber the 1858 Revolver was considered by many to be every bit the gun a Colt was and then some. It is said that soldiers of the Civil War not only preferred it by far as their choice of sidearm but would actually trade a handful of Colts for one Remington New Army. In fact after the war the Remington out-sold the Colt as a surplus weapon to veterans who had experienced first hand how the two guns stood up side by side to the rigors of combat use. The strength of the Remington had always been the first issue in its favor. As elegant as the Colt revolvers were they lacked the strength of the solid frame Remington. Perhaps not as easily dismantled for cleaning the Remington 1858 was full framed and capable of bearing under greater abuse than the open-top design of the Colt.


FinishesTechnicalParts and Schematics
G08: HAND RUBBED OIL ON SELECTED WOOD
Caliber: .44
Length of Barrel: 5½” – 8″
Overall Length: bbl.8 13.38″
Weight: bbl.8 2.69 lbs
Barrel: Casted stainless steel
Frame: Casted stainless steel
Twist: Left
Grip: Two pieces walnut
Magazine tube capacity: 6
Barrel Shape: Octagonal Tapered
Sight: Fixed or adjustable



Item Model Barrel Length cal.
0102 1858 NEW ARMY 8″ INOX .44 REV. 8” .44


c

N. Code No. Q.ty Description
1 0102001 1 STAINLESS STEEL FRAME
2 A0102002 1 RGT58 STAINLESS STEEL HAMMER ASSEMBLY
3 0102003 1 STAINLESS STEEL BARREL .44
5 A0102005 1 RGT58 STAINLESS STEEL .44 CYLINDER ASSEMBLY
7 A0100007 1 RGT58 HAND ASSEMBLY
9 0102009 1 STAINLESS STEEL BARREL STUD
10 0102010 1 TRIGGER
12 0100012 1 BOLT
13 A0102013 1 RGT58 STAINLESS STEEL LOADING LEVER 8″ ASSEMBLY
15 0102015 1 STAINLESS STEEL SIGHT
19 0100019 1 TRIGGER BOLT SPRING
20 0100020 1 MAIN SPRING
21 1
26 0102026 1 TRIGGERGUARD
31 0102031 1 STAINLESS STEEL TRIGGER SCREW
35 0102035 1 TRIGGER BOLT SPRING SCREW
37 0102037 1 STAINLESS STEEL HAMMER SCREW
38 0102038 1 STAINLESS STEEL TRIGGER SCREW
39 0102039 1 STAINLESS STEEL LOAD.LEVER SCREW
43 0100043 1 RIGHT GRIP NUT
44 0100044 1 LEFT GRIP NUT
45 0102045 1 RIGHT GRIP
46 0102046 1 LEFT GRIP
51 0100051 1 GRIP PIN
52 0100052 1 HAND SCREW
53 0102053 1 STAINLESS STEEL MAINSPRING SCREW
54 0102054 1 STAINLESS STEEL GRIP SCREW



0103 1858 NEW ARMY 8″ TARGET INOX.44 REV 8” .44


c1

N. Code No. Q.ty Description
1 0103001 1 STAINLESS STEEL FRAME
2 A0102002 1 RGT58 STAINLESS STEEL HAMMER ASSEMBLY
3 0102003 1 STAINLESS STEEL BARREL .44
5 A0102005 1 RGT58 STAINLESS STEEL .44 CYLINDER ASSEMBLY
7 A0100007 1 RGT58 HAND ASSEMBLY
9 0102009 1 STAINLESS STEEL BARREL STUD
10 0102010 1 TRIGGER
12 0100012 1 BOLT
13 A0102013 1 RGT58 STAINLESS STEEL LOADING LEVER 8″ ASSEMBLY
15 0101015 1 SIGHT
19 0100019 1 TRIGGER BOLT SPRING
20 0100020 1 MAIN SPRING
21 1
26 0102026 1 TRIGGERGUARD
31 0102031 1 STAINLESS STEEL TRIGGER SCREW
35 0102035 1 TRIGGER BOLT SPRING SCREW
37 0102037 1 STAINLESS STEEL HAMMER SCREW
38 0102038 1 STAINLESS STEEL TRIGGER SCREW
39 0102039 1 STAINLESS STEEL LOAD.LEVER SCREW
43 0100043 1 RIGHT GRIP NUT
44 0100044 1 LEFT GRIP NUT
45 0102045 1 RIGHT GRIP
46 0102046 1 LEFT GRIP
51 0100051 1 GRIP PIN
52 0100052 1 HAND SCREW
53 0102053 1 STAINLESS STEEL MAINSPRING SCREW
54 0102054 1 STAINLESS STEEL GRIP SCREW
56 0103056 1 STAINLESS ST.FRONT SIGHT RAMP
154 0101154 1 REAR SIGHT BLADE
156 0101156 1 REAR SIGHT RETAIN.SCREW
157 0101157 1 REAR SIGHT SCREW
158 0101158 2 REAR SIGHT BLADE SCREW
159 0101159 1 REAR SIGHT



0106 1858 NEW ARMY INOX 5.1/2″ .44 REV. 5.1/2″ .44



N. Code No. Q.ty Description
1 0102001 1 STAINLESS STEEL FRAME
2 A0102002 1 RGT58 STAINLESS STEEL HAMMER ASSEMBLY
3 0106003 1 STAINLESS STEEL BARREL .44
5 A0102005 1 RGT58 STAINLESS STEEL .44 CYLINDER ASSEMBLY
7 A0100007 1 RGT58 HAND ASSEMBLY
9 0102009 1 STAINLESS STEEL BARREL STUD
10 0102010 1 TRIGGER
12 0100012 1 BOLT
13 A0106013 1 RGT58 STAINLESS STEEL LOADING LEVER 5.1/2″ ASSEMBLY
15 0102015 1 STAINLESS STEEL SIGHT
19 0100019 1 TRIGGER BOLT SPRING
20 0100020 1 MAIN SPRING
21 1
26 0102026 1 TRIGGERGUARD
31 0102031 1 STAINLESS STEEL TRIGGER SCREW
35 0102035 1 TRIGGER BOLT SPRING SCREW
37 0102037 1 STAINLESS STEEL HAMMER SCREW
38 0102038 1 STAINLESS STEEL TRIGGER SCREW
39 0102039 1 STAINLESS STEEL LOAD.LEVER SCREW
43 0100043 1 RIGHT GRIP NUT
44 0100044 1 LEFT GRIP NUT
45 0102045 1 RIGHT GRIP
46 0102046 1 LEFT GRIP
51 0100051 1 GRIP PIN
52 0100052 1 HAND SCREW
53 0102053 1 STAINLESS STEEL MAINSPRING SCREW
54 0102054 1 STAINLESS STEEL GRIP SCREW
