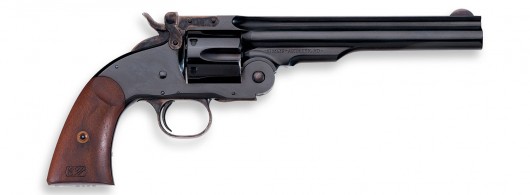

1875 SCHOFIELD 2° MOD.
Designed by Major Schofield of U.S. Army the Schofield Revolver was an improvement and up-grade of earlier top-break Single Action revolvers produced in the line of the legendary firearms company Smith & Wesson. The United States Army contracted a total of over 5 000 Schofields with 7-1/2″ barrel lengths. The caliber was .45 Schofield. This revolver represents the first real challenge on the military and civilian market to the Colt Single Action. Graceful and accurate the Schofield revolver was the choice of many gunslingers and entrepeneurs in the Old West. Jesse James is said to have carried both the Schofield and the Colt Single Actions simultaneously. The Wells Fargo Company stocked their considerable arsenal with special 5-1/2″ Schofield revolvers marked with the company logo. Now Uberti enriches its fine line of Historical Reproduction Firearms with the classic Schofield Single Action Revolver. Faithful to the sleek and graceful lines of the original the Uberti Top Breack is strengthened and improved with modern steels and technology enabling the chambering of modern smokeless cartridges in .44/40 and .45LC.
Back to category
Designed by Major Schofield of U.S. Army the Schofield Revolver was an improvement and up-grade of earlier top-break Single Action revolvers produced in the line of the legendary firearms company Smith & Wesson. The United States Army contracted a total of over 5 000 Schofields with 7-1/2″ barrel lengths. The caliber was .45 Schofield. This revolver represents the first real challenge on the military and civilian market to the Colt Single Action. Graceful and accurate the Schofield revolver was the choice of many gunslingers and entrepeneurs in the Old West. Jesse James is said to have carried both the Schofield and the Colt Single Actions simultaneously. The Wells Fargo Company stocked their considerable arsenal with special 5-1/2″ Schofield revolvers marked with the company logo. Now Uberti enriches its fine line of Historical Reproduction Firearms with the classic Schofield Single Action Revolver. Faithful to the sleek and graceful lines of the original the Uberti Top Breack is strengthened and improved with modern steels and technology enabling the chambering of modern smokeless cartridges in .44/40 and .45LC.
FinishesTechnicalParts and Schematics
| 000: | STANDARD |
|---|---|
| A00: | OLD WEST ANTIQUE PATINA FINISH REV. |
| C09: | CHARCOAL BLUE FINISH |
| W06: | WHITE FINISH FOR REV. |
| N04: | NICKEL PLATING FOR REV. |
| E13: | BASIC ENGRAVING |
| E14: | DELUX ENGRAVING |
| E15: | GOLD ENGRAVING |
| Caliber: | .38SP. – .44/40 – .45LC -.45Schofield |
|---|---|
| Length of Barrel: | 3½” – 5″ – 7″ |
| Overall Length: | bbl.7½ 12.75″ |
| Weight: | bbl.7½ 2.97 lbs |
| Barrel: | Forged steel |
| Frame: | Forged steel |
| Twist: | Right |
| Cylinder: | Fluted |
| Grip: | Two pieces walnut |
| Cylinder: | 6 |
| Sight: | Fixed |
| Item | Model | Barrel | Length cal. |
|---|---|---|---|
| 0850 | 1875 SCHOFIELD REV.7″.45LC CAT.8272 | 7” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 0850003 | 1 | BARREL .45COLT |
| 5 | 0850005 | 1 | CYLINDER .45COLT |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0850079 | 1 | EJECTOR .45 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0852 | 1875 SCHOFIELD REV.7″.44/40 CAT.8275 | 7” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 0852003 | 1 | BARREL .44-40 |
| 5 | 0852005 | 1 | CYLINDER .44-40 |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0852079 | 1 | EJECTOR .44-40 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0853 | 1875 SCHOFIELD REV.3.1/2″.45LC CAT.10490 | 3.1/2” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 0853003 | 1 | BARREL .45COLT |
| 5 | 0850005 | 1 | CYLINDER .45COLT |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0850079 | 1 | EJECTOR .45 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0854 | 1875 SCHOFIELD REV.3.1/2″.44-40 CAT.10489 | 3.1/2” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 0854003 | 1 | BARREL .45COLT |
| 5 | 0852005 | 1 | CYLINDER .44-40 |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0852079 | 1 | EJECTOR .44-40 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0855 | 1875 SCHOFIELD REV.5″.45LC CAT.9223 | 5” | 45LC |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 1 | ||
| 5 | 0850005 | 1 | CYLINDER .45COLT |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0850079 | 1 | EJECTOR .45 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0856 | 1875 SCHOFIELD REV.5″.44-40 CAT.10497 | 5” | 44-40 |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 1 | ||
| 5 | 0852005 | 1 | CYLINDER .44-40 |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0852079 | 1 | EJECTOR .44-40 |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0857 | 1875 SCHOFIELD REV.7″.38SP.CAT.9439 | 7” | 38 SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 1 | ||
| 5 | 0857005 | 1 | CYLINDER .45COLT |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0857079 | 1 | EJECTOR .45COLT |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0858 | 1875 SCHOFIELD REV.5″.38SP.CAT.9438 | 5” | 38 SPEC. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 1 | ||
| 5 | 0857005 | 1 | CYLINDER .45COLT |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0857079 | 1 | EJECTOR .45COLT |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
| 0859 | 1875 SCHOFIELD REV.3.1/2″.44RUSSIAN CAT.10488 | 3.1/2” | 44RUSS. |
| N. | Code No. | Q.ty | Description |
|---|---|---|---|
| 1 | 0850001 | 1 | FRAME |
| 2 | A0850002 | 1 | SCHOFIELD 2°MOD. HAMMER ASSEMBLY |
| 3 | 0854003 | 1 | BARREL .45COLT |
| 5 | 0859005 | 1 | CYLINDER .44RUSSIAN |
| 10 | 0850010 | 1 | TRIGGER |
| 12 | 0850012 | 1 | BOLT |
| 15 | 0850015 | 1 | FRONT SIGHT |
| 18 | 0400018 | 1 | HAND SPRING -COIL TYPE |
| 19 | 0850019 | 1 | SEAR AND BOLT SPRING |
| 20 | 0850020 | 1 | MAIN SPRING |
| 22 | 0400022 | 1 | HAND PIN |
| 26 | 0850026 | 1 | TRIGGERGUARD |
| 37 | 0850037 | 1 | HAMMER SCREW |
| 40 | 0850040 | 1 | BOLT PIN |
| 43 | 0150043 | 1 | RIGHT GRIP NUT |
| 44 | 0150044 | 1 | LEFT GRIP NUT |
| 45 | 0850045 | 1 | RIGHT GRIP |
| 46 | 0850046 | 1 | LEFT GRIP |
| 51 | 0850051 | 1 | GRIP PIN |
| 53 | 0850053 | 1 | MAIN SPRING SCREW |
| 54 | 0850054 | 1 | GRIP SCREW |
| 79 | 0851079 | 1 | EJECTOR .44S&W SP |
| 99 | 0850099 | 2 | TRIGGER PIN |
| 167 | 0850167 | 1 | TRIGGERGUARD SCREW |
| 178 | 0850178 | 1 | HAMMER PIN |
| 187 | 0850187 | 1 | BASE PIN BUSHING |
| 215 | 0850215 | 1 | HINGE PIN SCREW |
| 241 | 0850241 | 1 | EJECTOR CAM |
| 318 | 0850318 | 1 | HINGE PIN |
| 420 | 0850420 | 1 | SIDE PLATE |
| 421 | 0850421 | 1 | EJECTOR ROD |
| 429 | 0850429 | 1 | EJECTOR SPRING |
| 430 | 0850430 | 1 | BOLT SPRING |
| 453 | 0850453 | 1 | SIDE PLATE SCREW |
| 574 | 0850574 | 1 | SIGHT PIN |
| 636 | 0850636 | 1 | TRIGGER SPRING PIN |
| 637 | 0850637 | 1 | EJECTOR LEVER |
| 638 | 0850638 | 1 | EJECTOR LEVER SPRING |
| 639 | 0850639 | 1 | STUD LATCH |
| 640 | 0850640 | 1 | STUD LATCH SPRING |
| 641 | 0850641 | 1 | STUD LATCH SCREW |
| 645 | 0850645 | 1 | BARREL BLOCK |
| 646 | 0850646 | 2 | BARREL BLOCK SCREW |
| 656 | 0850656 | 1 | SAFETY BLOCK |
| 659 | 0850659 | 1 | HINGE PIN PEG |
