1885 low-wall, schuetzen (SET09), double set trigger (set04) bbl. 30″

1885 SINGLE SHOT LOW WALL

1885 SINGLE SHOT RIfLES AND CARBINE The production of the Single Shot started in September 1885 using the Browning patent and terminated towards the end of 1920. It became one of the best known guns and was regarded by many as being the best Single Shot ever to be made. Without doubt it is stronger than the Sharps better designed very accurate and reliable in every way. Few guns have been made in so many different calibers – high walls even served in the development of the 7.62 Nato round. The gun was produced during a period in which target shooting was a really popular sport they were used in International Competitions at 1 000 yards

Back to category

1885 SINGLE SHOT RIFLES AND CARBINE The production of the Single Shot started in September 1885 using the Browning patent and terminated towards the end of 1920. It became one of the best known guns and was regarded by many as being the best Single Shot ever to be made. Without doubt it is stronger than the Sharps better designed very accurate and reliable in every way. Few guns have been made in so many different calibers – high walls even served in the development of the 7.62 Nato round. The gun was produced during a period in which target shooting was a really popular sport they were used in International Competitions at 1 000 yards


FinishesTechnicalParts and Schematics
000: STANDARD
A01: ANTIQUE PATINA FINISH OLD WEST RIFLES
G05: HAND RUBBED OIL ON DELUXE WOOD
W03: WHITE FINISH FOR W73-SLIDE
C04: CHARCOAL BLUE FOR SINGLE SHOT
Caliber: .17HM2 – .17HMR – .22LR – .22MAG. – .22HORNET – .38SP – .32/20 – .357MAG. – .38/40 – .44/40 – .44SP – .45LC
Length of Barrel: 30″
Overall Length: 45.40″
Weight: 6.56 lbs
Barrel: Forged steel
Frame: Forged steel and color case
Barrel Shape: OCTAGONAL TAPERED
Stock: Walnut
Forend: Walnut



Item Model Barrel Length cal.
0833 S.S.LOW-WALL .17HM2 30″ CAT.14784 30” 17HM2


0833 0833

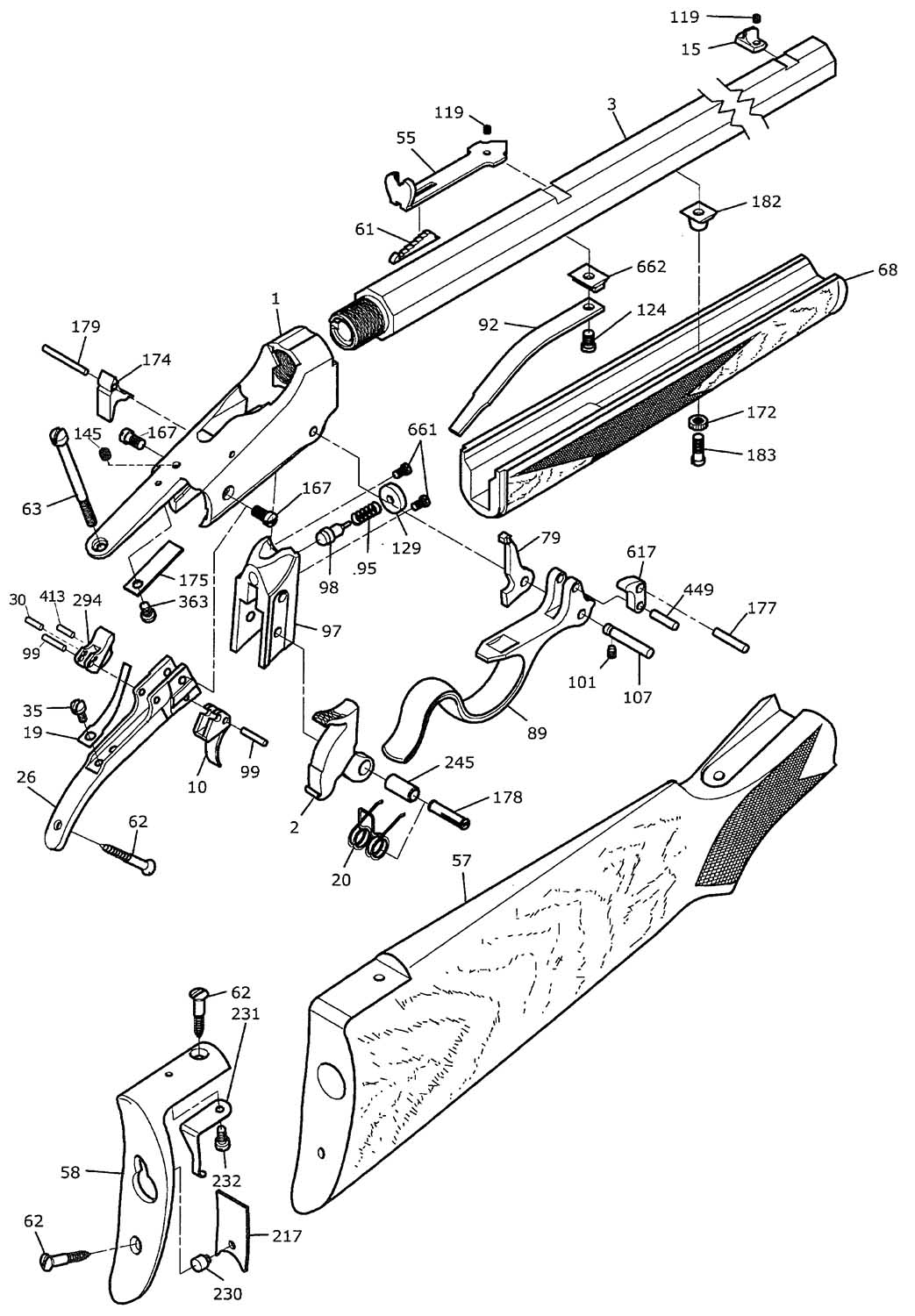

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0833003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0849079 1 EJECTOR .22LR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0834 S.S.LOW-WALL .17HMR 30″ CAT.14785 30” 17HMR


0834

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0834003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0834079 1 EJECTOR .17HMR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0836 S.S.LOW-WALL .45LC 30″ CAT.12312 30” 45LC


0836

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0836003 1 BARREL 30″ .45COLT
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0838 S.S.LOW-WALLL.44-40 30″ CAT.12316 30” 44-40


0838

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0838003 1 BARREL 30″ .44-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0839 S.S.LOW-WALL .44SPEC. 30″ CAT.12314 30” 44SPEC.


0839

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0839003 1 BARREL 30″ .44SP.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0841 S.S.LOW-WALL.38-40 30″ CAT.12318 30” 38-40


0841

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0841003 1 BARREL 30″ .38-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0842 S.S.LOW-WALL.32-20 30″ CAT.12320 30” 32-20


0842

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0842003 1 BARREL 30″ .32-20
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0842079 1 EJECTOR .32-20
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0845 S.S.LOW-WALL.357MAG.30″ CAT.12313 30” 357MAG


0845

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0845003 1 BARREL 30″ .357MAG.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0845079 1 EJECTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0847 S.S.LOW-WALL.22HORN.30″CAT.12671 30” 22HORN


0847

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0847003 1 BARREL 30″ .22HORN.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0847079 1 EJECTOR .22HORNET
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0848 S.S.LOW-WALL .22MAG. 30″ CAT.12672 30” 22 MAGNUM


0848

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0848003 1 BARREL 30″ .22MAG.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0848079 1 EJECTOR .22MAG
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



0849 S.S.LOW-WALL.22LR 30″ CAT.12670 30” 22LR


0849

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0849003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 0870026 1 TRIGGER HOUSING
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 0849057 1 BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 0849063 1 TANG SCREW
68 0849068 1 FOREND
79 0849079 1 EJECTOR .22LR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8050 S.S.LOW-WALL.22LR 30″ CAT.12670 CHECKERED PISTOL GRIP 30” 22LR


8050

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0849003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0849079 1 EJECTOR .22LR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8051 S.S.LOW-WALL .22MAG. 30″ CAT.12672 CHECKERED PISTOL GRIP 30” 22MAG.


8051

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0848003 1 BARREL 30″ .22MAG.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0848079 1 EJECTOR .22MAG
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8052 S.S.LOW-WALL.22HORN.30″CAT.12671 CHECKERED PISTOL GRIP 30” 22HORN


8052

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0847003 1 BARREL 30″ .22HORN.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0847079 1 EJECTOR .22HORNET
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8054 S.S.LOW-WALL.357MAG.30″ CAT.12313 CHECKERED PISTOL GRIP 30” 357MAG


8054

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0845003 1 BARREL 30″ .357MAG.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0845079 1 EJECTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8057 S.S.LOW-WALL.32-20 30″ CAT.12320 CHECKERED PISTOL GRIP 30” 32-20


8057

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0842003 1 BARREL 30″ .32-20
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0842079 1 EJECTOR .32-20
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8058 S.S.LOW-WALL.38-40 30″ CAT.12318 CHECKERED PISTOL GRIP 30” 38-40


8058

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0841003 1 BARREL 30″ .38-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8060 S.S.LOW-WALL .44SPEC. 30″ CAT.12314 CHECKERED PISTOL GRIP 30” 44SPEC.


8060

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0839003 1 BARREL 30″ .44SP.
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8061 S.S.LOW-WALLL.44-40 30″ CAT.12316 CHECKERED PISTOL GRIP 30” 44-40


8061

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0838003 1 BARREL 30″ .44-40
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0850051 1 GRIP PIN
51 0100051 2 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8063 S.S.LOW-WALL .45LC 30″ CAT.12312 CHECKERED PISTOL GRIP 30” 45LC


8063

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0836003 1 BARREL 30″ .45COLT
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0872079 1 EXTRACTOR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0870098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0870129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8065 S.S.LOW-WALL .17HMR 30″ CAT.14785 CHECKERED PISTOL GRIP 30” 17HMR


8065

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0834003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0834079 1 EJECTOR .17HMR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW



8066 S.S.LOW-WALL .17HM2 30″ CAT.14784 CHECKERED PISTOL GRIP 30” 17HM2


8066

N. Code No. Q.ty Description
1 0849001 1 FRAME
2 0849002 1 HAMMER
3 0833003 1 BARREL 30″ .22LR
10 0870010 1 LOWER TRIGGER
15 1
19 0870019 1 TRIGGER SPRING
20 0870020 1 MAINSPRING
26 8000026 1 TRIGGERGUARD FOR C.P.G.STOCK
30 0000030 1 ROLLER PIN
35 0870035 2 TRIGGER SPRING SCREW
51 0100051 2 GRIP PIN
51 0850051 1 GRIP PIN
55 0242055 1 REAR
57 8050057 1 CHECKERED PISTOL GRIP BUTT STOCK
58 0242058 1 BUTT PLATE
61 0242061 1 REAR SIGHT
62 0200062 3 BUTT PLATE SCREW
63 8050063 1 TANG SCREW FOR C.P.G.MOD.
68 0849068 1 FOREND
79 0849079 1 EJECTOR .22LR
89 0870089 1 LEVER
92 0870092 1 LEVER SPRING
95 0870095 1 FIRING PIN SPRING
97 0849097 1 BREECH BLOCK
98 0849098 1 FIRING PIN
101 0870101 1 LEVER SCREW
107 0870107 1 LEVER PIN
129 0849129 1 FIRING PIN BEARING
145 0400145 1 GATE CATCH SCREW
167 0870167 2 TRIGGERGUARD SCREW
172 0130172 1 FOREND NUT
174 0870174 1 SEAR
175 0870175 1 SEAR SPRING
177 0870177 1 BLOCK PIN
178 0870178 1 HAMMER PIN
179 0870179 1 SEAR PIN
182 0870182 1 TENON
183 0870183 1 FOREND SCREW
245 0870245 1 DISTANCE RING
294 0870294 1 LOWER TRIGGER
363 0870363 1 SEAR SPRING SCREW
413 0870413 1 TRIGGER
617 0870617 1 CONN. ROD
661 0870661 2 FIRING PIN BEARING SCREW
662 0870662 1 LEVER SPRING PLAQUE
692 0400692 1 HAND PIN SCREW


  • RICHARDS NAVY 1851 bbl. 7 ½″

    1851 RICHARDS NAVY

  • 1851 RICHARDS-MASON NAVY bbl. 7 ½″

    1851 RICHARDS-MASON NAVY

  • 1860 RICHARDS-MASON ARMY - bbl.5½''

    1860 RICHARDS-MASON ARMY

  • 1872 OPEN TOP LATE MODEL bbl. 7 ½″

    1872 OPEN TOP LATE MODEL

  • 1858 NEW IMPROVED ARMY CONVERSION BBL 8”

    1858 NEW IMPROVED ARMY

  • 1873 CATTLEMAN CARBINE NEW MODEL BBL. 18″

    1873 CATTLEMAN CARBINE NEW MODEL

  • 1873 CATTLEMAN BISLEY BBL. 7 ½″

    1873 CATTLEMAN BISLEY

  • 1848 BABY DRAGOON - bbl.4''

    1848 BABY DRAGOON

  • 1862 POLICE bbl.5 ½″

    1862 POLICE

  • 1851 NAVY BBL. 7 ½″

    1851 NAVY
