Built for a very short time and in extremely low numbers for a production firearm the 1890 Remington “Police” revolver was in many ways a failed attempt to stay current with a revolver design that was fast becoming obsolete. As the double action grew in popularity and the Colt remained dominant in the sales of Single Action Revolvers the 1890 Remington was discontinued and Remington`s line moved forward without it. Offered in both the 5 1/2″ barrel which was standard and in the unique and elegant 7 1/2″ barrel.
FinishesTechnicalParts and Schematics
000: |
STANDARD |
A00: |
OLD WEST ANTIQUE PATINA FINISH REV. |
B04: |
CASE HARDENED FRAME FOR 1890 |
C08: |
CHARCOAL BLUE FINISH AND COLOR CASE HARDENED FRAME FOR 1890 |
W00: |
WHITE FINISH FOR REV. |
N00: |
NICKEL PLATING FOR REV. |
E08: |
STANDARD ENGRAVING |
L02: |
STANDARD LASER ENGRAVING |
Caliber: |
.357MAG. – .44/40 – .45LC – .45ACP |
Length of Barrel: |
5½” – 7½” |
Overall Length: |
bbl.7½ 10.8″ |
Weight: |
bbl.7½ 2.50 lbs |
Barrel: |
Forged steel |
Frame: |
Casted steel |
Twist: |
Left |
Cylinder: |
Fluted |
Grip: |
Two pieces walnut |
Cylinder: |
6 |
Barrel Shape: |
Round Tapered |
Sight: |
Fixed |

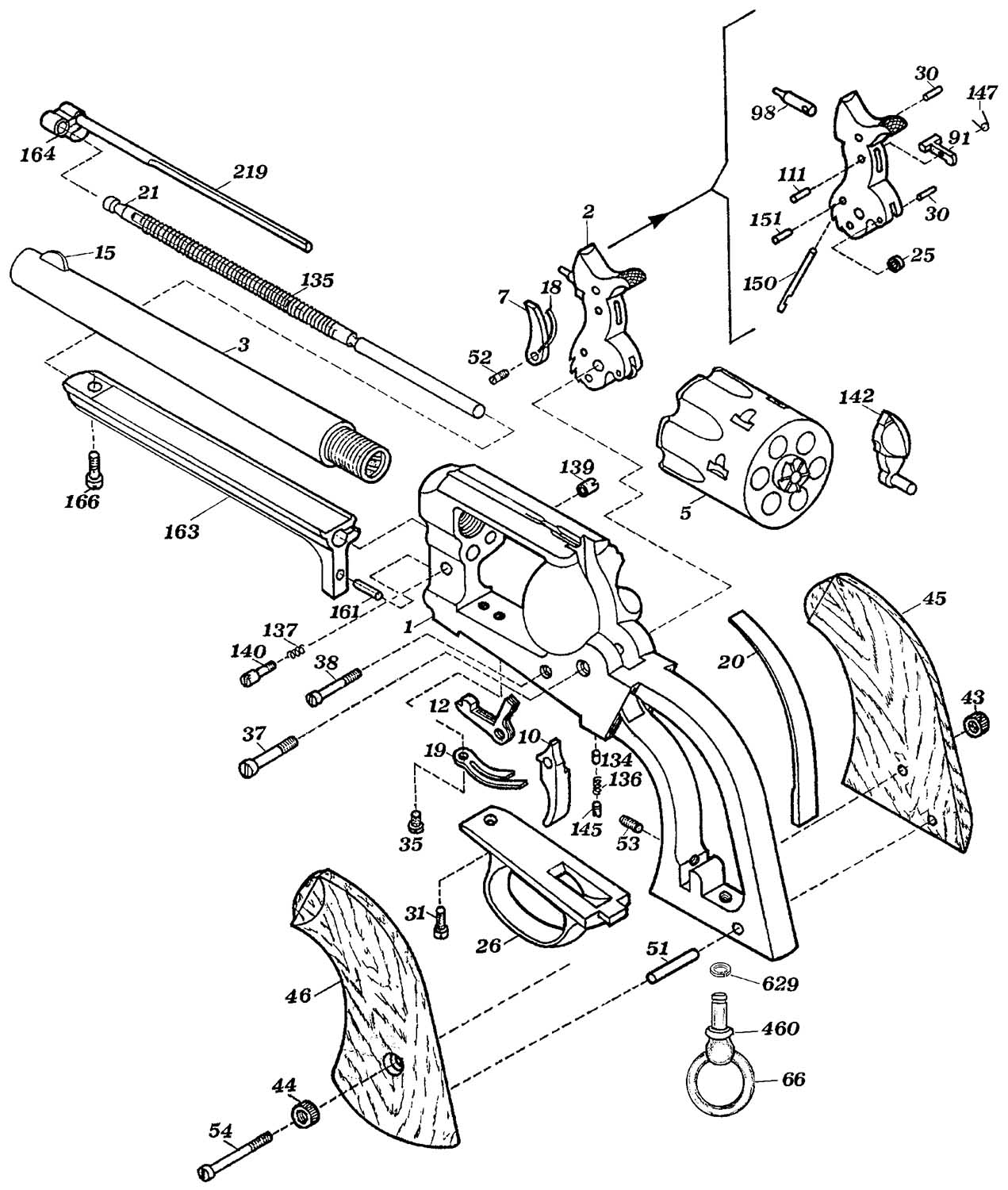

Item |
Model |
Barrel |
Length cal. |
0155 |
1890 S.A. ARMY OUTLAW .45LC REV. 5.1/2″ CAT.4188 |
5.1/2” |
45LC |
N. |
Code No. |
Q.ty |
Description |
1 |
0150001 |
1 |
FRAME |
2 |
A0150002 |
1 |
RGT75 HAMMER ASSEMBLY |
3 |
0155003 |
1 |
BARREL 5.1/2″ .45LC |
5 |
0151005 |
1 |
CYLINDER .45LC |
7 |
A0150007 |
1 |
RGT75 HAND ASSEMBLY |
10 |
0150010 |
1 |
TRIGGER |
12 |
0150012 |
1 |
BOLT |
15 |
0410015 |
1 |
FRONT SIGHT |
19 |
0100019 |
1 |
TRIGGER BOLT SPRING |
20 |
0100020 |
1 |
MAIN SPRING |
21 |
0150021 |
1 |
BASE PIN |
26 |
0150026 |
1 |
TRIGGERGUARD |
31 |
0150031 |
1 |
TG. SCREW |
35 |
0150035 |
1 |
BOLT SPRING SCREW |
37 |
0150037 |
1 |
HAMMER SCREW |
38 |
0150038 |
1 |
TRIGGER SCREW |
43 |
0150043 |
1 |
RIGHT GRIP NUT |
44 |
0150044 |
1 |
LEFT GRIP NUT |
45 |
0150045 |
1 |
RIGHT GRIP |
46 |
0150046 |
1 |
LEFT GRIP |
51 |
0100051 |
1 |
GRIP PIN |
52 |
0100052 |
1 |
HAND SCREW |
53 |
1000053 |
1 |
MAIN SPRING SCREW |
54 |
0150054 |
1 |
GRIP SCREW |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
66 |
A0155066 |
1 |
RGT90 LANYARD RING ASSEMBLY |
134 |
0150134 |
1 |
GATE CATCH |
135 |
0150135 |
1 |
EJECTOR SPRING |
136 |
0150136 |
1 |
GATE SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
142 |
0150142 |
1 |
GATE |
145 |
0150145 |
1 |
GATE CATCH SCREW |
161 |
0150161 |
1 |
SUPPORT EJECTOR PIN |
163 |
0155163 |
1 |
SUPPORT EJECTOR |
166 |
0150166 |
1 |
SUPPORT EJECTOR SCREW |
219 |
A0150219 |
1 |
RGT75 EJECTOR 7.1/2″ ASSEMBLY |
0156 |
1890 S.A. ARMY OUTLAW .44/40 REV. 5.1/2″ CAT.4189 |
5.1/2” |
44-40 |
N. |
Code No. |
Q.ty |
Description |
1 |
0150001 |
1 |
FRAME |
2 |
A0150002 |
1 |
RGT75 HAMMER ASSEMBLY |
3 |
0156003 |
1 |
BARREL 5.1/2″ .44/40 |
5 |
0153005 |
1 |
CYLINDER .44/40 |
7 |
A0150007 |
1 |
RGT75 HAND ASSEMBLY |
10 |
0150010 |
1 |
TRIGGER |
12 |
0150012 |
1 |
BOLT |
15 |
0410015 |
1 |
FRONT SIGHT |
19 |
0100019 |
1 |
TRIGGER BOLT SPRING |
20 |
0100020 |
1 |
MAIN SPRING |
21 |
0150021 |
1 |
BASE PIN |
26 |
0150026 |
1 |
TRIGGERGUARD |
31 |
0150031 |
1 |
TG. SCREW |
35 |
0150035 |
1 |
BOLT SPRING SCREW |
37 |
0150037 |
1 |
HAMMER SCREW |
38 |
0150038 |
1 |
TRIGGER SCREW |
43 |
0150043 |
1 |
RIGHT GRIP NUT |
44 |
0150044 |
1 |
LEFT GRIP NUT |
45 |
0150045 |
1 |
RIGHT GRIP |
46 |
0150046 |
1 |
LEFT GRIP |
51 |
0100051 |
1 |
GRIP PIN |
52 |
0100052 |
1 |
HAND SCREW |
53 |
1000053 |
1 |
MAIN SPRING SCREW |
54 |
0150054 |
1 |
GRIP SCREW |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
66 |
A0155066 |
1 |
RGT90 LANYARD RING ASSEMBLY |
134 |
0150134 |
1 |
GATE CATCH |
135 |
0150135 |
1 |
EJECTOR SPRING |
136 |
0150136 |
1 |
GATE SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
142 |
0150142 |
1 |
GATE |
145 |
0150145 |
1 |
GATE CATCH SCREW |
161 |
0150161 |
1 |
SUPPORT EJECTOR PIN |
163 |
0155163 |
1 |
SUPPORT EJECTOR |
166 |
0150166 |
1 |
SUPPORT EJECTOR SCREW |
219 |
A0150219 |
1 |
RGT75 EJECTOR 7.1/2″ ASSEMBLY |
0157 |
1890 S.A. ARMY OUTLAW .357MAG REV. 5.1/2″ CAT.4190 |
5.1/2” |
357MAG |
N. |
Code No. |
Q.ty |
Description |
1 |
0150001 |
1 |
FRAME |
2 |
A0150002 |
1 |
RGT75 HAMMER ASSEMBLY |
3 |
0157003 |
1 |
BARREL 5.1/2″ .357MAG |
5 |
0150005 |
1 |
CYLINDER .357MAG |
7 |
A0150007 |
1 |
RGT75 HAND ASSEMBLY |
10 |
0150010 |
1 |
TRIGGER |
12 |
0150012 |
1 |
BOLT |
15 |
0400015 |
1 |
FRONT SIGHT |
19 |
0100019 |
1 |
TRIGGER BOLT SPRING |
20 |
0100020 |
1 |
MAIN SPRING |
21 |
0150021 |
1 |
BASE PIN |
26 |
0150026 |
1 |
TRIGGERGUARD |
31 |
0150031 |
1 |
TG. SCREW |
35 |
0150035 |
1 |
BOLT SPRING SCREW |
37 |
0150037 |
1 |
HAMMER SCREW |
38 |
0150038 |
1 |
TRIGGER SCREW |
43 |
0150043 |
1 |
RIGHT GRIP NUT |
44 |
0150044 |
1 |
LEFT GRIP NUT |
45 |
0150045 |
1 |
RIGHT GRIP |
46 |
0150046 |
1 |
LEFT GRIP |
51 |
0100051 |
1 |
GRIP PIN |
52 |
0100052 |
1 |
HAND SCREW |
53 |
1000053 |
1 |
MAIN SPRING SCREW |
54 |
0150054 |
1 |
GRIP SCREW |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
66 |
A0155066 |
1 |
RGT90 LANYARD RING ASSEMBLY |
134 |
0150134 |
1 |
GATE CATCH |
135 |
0150135 |
1 |
EJECTOR SPRING |
136 |
0150136 |
1 |
GATE SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
142 |
0150142 |
1 |
GATE |
145 |
0150145 |
1 |
GATE CATCH SCREW |
161 |
0150161 |
1 |
SUPPORT EJECTOR PIN |
163 |
0155163 |
1 |
SUPPORT EJECTOR |
166 |
0150166 |
1 |
SUPPORT EJECTOR SCREW |
219 |
A0150219 |
1 |
RGT75 EJECTOR 7.1/2″ ASSEMBLY |
0158 |
1890 S.A.ARMY OUTLAW .45ACP REV. CAT.6798 |
5.1/2” |
45ACP |
N. |
Code No. |
Q.ty |
Description |
1 |
0150001 |
1 |
FRAME |
2 |
A0150002 |
1 |
RGT75 HAMMER ASSEMBLY |
3 |
0155003 |
1 |
BARREL 5.1/2″ .45LC |
5 |
0152005 |
1 |
CYLINDER .45ACP |
7 |
A0150007 |
1 |
RGT75 HAND ASSEMBLY |
10 |
0150010 |
1 |
TRIGGER |
12 |
0150012 |
1 |
BOLT |
15 |
0410015 |
1 |
FRONT SIGHT |
19 |
0100019 |
1 |
TRIGGER BOLT SPRING |
20 |
0100020 |
1 |
MAIN SPRING |
21 |
0150021 |
1 |
BASE PIN |
26 |
0150026 |
1 |
TRIGGERGUARD |
31 |
0150031 |
1 |
TG. SCREW |
35 |
0150035 |
1 |
BOLT SPRING SCREW |
37 |
0150037 |
1 |
HAMMER SCREW |
38 |
0150038 |
1 |
TRIGGER SCREW |
43 |
0150043 |
1 |
RIGHT GRIP NUT |
44 |
0150044 |
1 |
LEFT GRIP NUT |
45 |
0150045 |
1 |
RIGHT GRIP |
46 |
0150046 |
1 |
LEFT GRIP |
51 |
0100051 |
1 |
GRIP PIN |
52 |
0100052 |
1 |
HAND SCREW |
53 |
1000053 |
1 |
MAIN SPRING SCREW |
54 |
0150054 |
1 |
GRIP SCREW |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
66 |
A0155066 |
1 |
RGT90 LANYARD RING ASSEMBLY |
134 |
0150134 |
1 |
GATE CATCH |
135 |
0150135 |
1 |
EJECTOR SPRING |
136 |
0150136 |
1 |
GATE SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
142 |
0150142 |
1 |
GATE |
145 |
0150145 |
1 |
GATE CATCH SCREW |
161 |
0150161 |
1 |
SUPPORT EJECTOR PIN |
163 |
0155163 |
1 |
SUPPORT EJECTOR |
166 |
0150166 |
1 |
SUPPORT EJECTOR SCREW |
219 |
A0150219 |
1 |
RGT75 EJECTOR 7.1/2″ ASSEMBLY |
0159 |
1890 S.A.ARMY OUTLAW .45LC/ACP REV. WITH EXTRA CYL.-CAT.6798 |
5.1/2” |
45ACP/LC |
N. |
Code No. |
Q.ty |
Description |
1 |
0150001 |
1 |
FRAME |
2 |
A0150002 |
1 |
RGT75 HAMMER ASSEMBLY |
3 |
0155003 |
1 |
BARREL 5.1/2″ .45LC |
5 |
0151005 |
1 |
CYLINDER .45LC |
5 |
0152005 |
1 |
CYLINDER .45ACP |
7 |
A0150007 |
1 |
RGT75 HAND ASSEMBLY |
10 |
0150010 |
1 |
TRIGGER |
12 |
0150012 |
1 |
BOLT |
15 |
0410015 |
1 |
FRONT SIGHT |
19 |
0100019 |
1 |
TRIGGER BOLT SPRING |
20 |
0100020 |
1 |
MAIN SPRING |
21 |
0150021 |
1 |
BASE PIN |
26 |
0150026 |
1 |
TRIGGERGUARD |
31 |
0150031 |
1 |
TG. SCREW |
35 |
0150035 |
1 |
BOLT SPRING SCREW |
37 |
0150037 |
1 |
HAMMER SCREW |
38 |
0150038 |
1 |
TRIGGER SCREW |
43 |
0150043 |
1 |
RIGHT GRIP NUT |
44 |
0150044 |
1 |
LEFT GRIP NUT |
45 |
0150045 |
1 |
RIGHT GRIP |
46 |
0150046 |
1 |
LEFT GRIP |
51 |
0100051 |
1 |
GRIP PIN |
52 |
0100052 |
1 |
HAND SCREW |
53 |
1000053 |
1 |
MAIN SPRING SCREW |
54 |
0150054 |
1 |
GRIP SCREW |
59 |
0120059 |
1 |
MAIN SPRING LOOP SCREW |
66 |
A0155066 |
1 |
RGT90 LANYARD RING ASSEMBLY |
134 |
0150134 |
1 |
GATE CATCH |
135 |
0150135 |
1 |
EJECTOR SPRING |
136 |
0150136 |
1 |
GATE SPRING |
137 |
4500137 |
1 |
BASE PIN SPRING |
139 |
0400139 |
1 |
BASE PIN NUT |
140 |
0400140 |
1 |
BASE PIN SCREW |
142 |
0150142 |
1 |
GATE |
145 |
0150145 |
1 |
GATE CATCH SCREW |
161 |
0150161 |
1 |
SUPPORT EJECTOR PIN |
163 |
0155163 |
1 |
SUPPORT EJECTOR |
166 |
0150166 |
1 |
SUPPORT EJECTOR SCREW |
219 |
A0150219 |
1 |
RGT75 EJECTOR 7.1/2″ ASSEMBLY |
